Weidmuller 1565780000 CSL1,6R14-12 SN I3,5
- MPN: 1565780000
- PPN: WDM-1565780000
CAD
$1.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

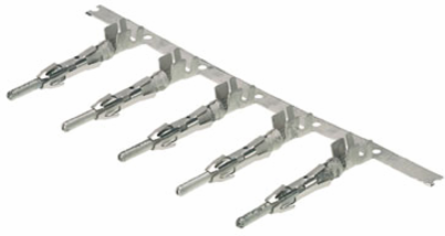

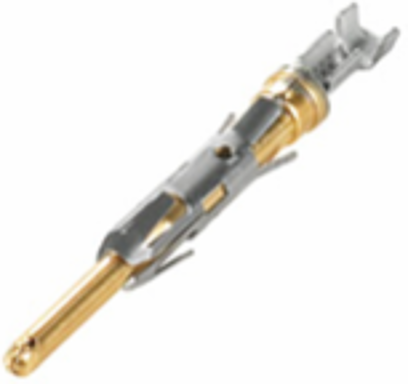

PCB plug-in connector, Crimp contact, Reel packaged, Pin – long, tinned, Max. clamping range : 2.5 mm²
Documentation & Downloads
Specifications
Approvals
- ROHS
- Conform
Dimensions And Weights
- Net weight
- 0.53 g
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984
Material Data
- Contact material
- CuZn
- Storage temperature, min.
- -25 °C
- Max. relative humidity during storage
- 80 %
- Operating temperature, max.
- 100 °C
- Temperature range, installation, max.
- 100 °C
Contact surfacetinned
Storage temperature, max.55 °C
Operating temperature, min.-50 °C
Temperature range, installation, min.-25 °C
Classifications
- ETIM 6.0
- EC000796
- eClass 9.0
- 27-44-02-04
- eClass 10.0
- 27-44-02-04
ETIM 7.0EC000796
eClass 9.127-44-02-04
UNSPSC30-21-19-23
System Parameters
- Product family
- OMNIMATE Power - Powerbus series
- Number of poles
- 1

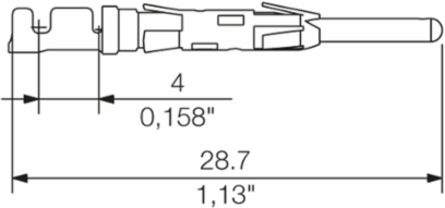

- Stripping length
- 4 mm
Wire connection methodCrimp connection
Volume resistance3.30 mΩ
Packing
- Packaging
- Box
- VPE width
- 600 mm
VPE length60 mm
VPE height580 mm
Notes
- Notes
- The long pins can be used with the standard pins as leading contacts.
IPC conformityConformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Conductors Suitable For Connection
- Clamping range, max.
- 2.5 mm²
- Wire connection cross section AWG, max.
- AWG 12
- Outer diameter of insulation, max.
- 3.5 mm
Wire connection cross section AWG, min.AWG 14
Outer diameter of insulation, min.2.8 mm
Max. clamping range2.5 mm²
