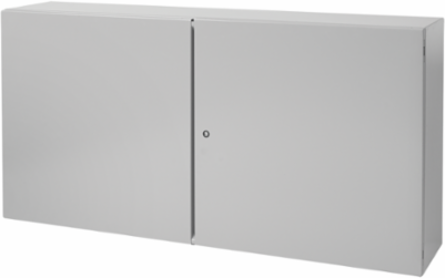

nVent Hoffman CTD366012 Concept Two-Door Enclosure 36x60x12 Inch, Steel, IP55, NEMA 12
- MPN: CTD366012
- UPC: 783510777609
- PPN: HOF-CTD366012
- UNSPSC: 39121324
CAD
$2544.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Concept two door enclosures offer full-width access for machine control applications. This Concept Two-Door Enclosure, CTD366012 item measures 36.00x60.00x12.00 inches with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- Corner-formed doors
- Simple easy-to-remove and install hinge pins with built-in captivation clip
- High-torque threadless studs and fasteners on door
- Minimum-width body flange provides maximum door opening (210 degrees)
- Door opens 210 degrees
- External formed body flange
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for optional external wall-mount brackets
- Removable door with hidden hinges for clean, aesthetic appearance
- Seamless foam-in-place gasket
- Quarter-turn slotted latch(es)
- Door alignment device on doors wider than 30 in.
- Four hinges on 60in.-high enclosures
- Grounding stud on body; bonding provision on door
- Provisions on door for optional high-impact thermoplastic data pocket
- Hardware kit with panel mounting nuts, panel grounding hardware and sealing washers
- Installation instructions provided
- Overlapping door design that provides full-width access
- Three-point latch system on right-hand hinged door furnished with flush slotted insert
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 1,524
- Protection Rating
- NEMA Type 12
- Finish
- Powder Coated
- Body Thickness
- 1.9
- Mounting (G x H)
- 876 x 1486
- Weight
- 157
- Material
- Steel
- Color
- Gray
Height (H)914
Depth (D)305
Product FamilyConcept
Color CodeANSI 61
Door Thickness1.9
IP RatingIP55
Sub BrandConcept
Size36.00x60.00x12.00 in
NEMA Rating12 Indoor, dust-resistant
