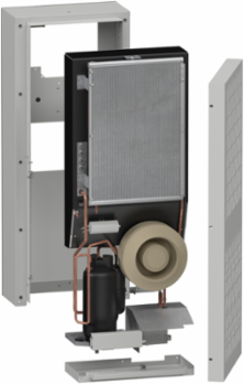

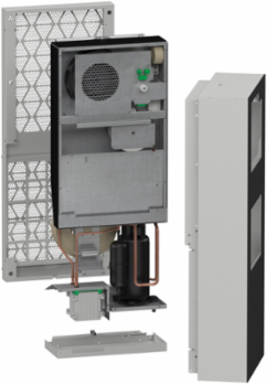

Schneider Electric NSYCUHD1K2P4DG Outdoor Connected Cooling Unit, Climasys CU, 1kW, 2 Poles, 400/460V, 50/60Hz, IP55
- MPN: NSYCUHD1K2P4DG
- PPN: SCH-NSYCUHD1K2P4DG
CAD
$3457.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This new Outdoor Connected Cooling Unit, designed by Schneider Electric, is perfectly adapted for Automation & Control and Electrical distribution panels, installed outdoor and in harsh environment. It’s smart, compact, and reliable. For international business purpose, it’s compliant to IEC14511 and UL60335-1 & UL60335-2-40. This cooling device is made by Steel protected, offering an internal IP55. Its cooling capacity L35-35 is 1000W according to EN 14511. Its power voltage is 400/460V, 50/60Hz, 2 phases. Its native Modbus connectivity is 100% compatible with any Scada system. Remote alarms and operation data makes manufacturing process more dependable with fewer downtimes, with quicker and easier problem fixing, and electrical components expended lifespan. The new Connected Cooling Units are also associated with Software’s and Services, like ProClima Web or IGE XAO suits. By using these tools, in only few minutes, it’s possible to select and optimize one Thermal management solution, and to design one panel (with its enclosures, devices and Thermal solution), with 3D and 2D drawings. Also, the Schneider Electric EcoStruxure Apps and analytics facilitates process supervision with real life data and action recommendations for more efficient operation and maintenance (preventive and predictive).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Malta

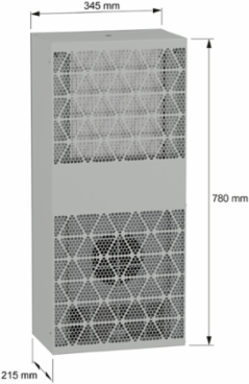

- Width
- 13.58 in
Height30.71 in
Depth215 mm
Physical Attributes
- Color
- Gray RAL 7035)
Complementary Attributes
- Line Rated Current
- 1.4 A
Rated Power In W990 W
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL, IEC, EN
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 58 kg CO2 eq., 57.99878090725311
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 113 kg CO2 eq., 113.19012566366972
- Local Data Status
- Publishable
- Return Indicator
- N
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2301019EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2327
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Control Type
- electronic controller
- Cooling Power
- 990 W 50/60 Hz L35-L35710 W 50/60 Hz L35-L50
- Incomer Device
- M9F23216
- Material
- steel
- Mounting Mode
- by screws
- Power Consumption In W
- 502 W 50/60 Hz, L35-L35561 W 50/60 Hz, L35-L50
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Name
- CU
- Protection Type
- 2 phases 15 A (T)
- Returnability
- No
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 3 230 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- To produce 2 kW of cooling, according to the appropriate usage scenario defined in the EN 14825 standard and during the 22-year reference lifetime of the product.& 10& 10- Product dimensions 1000mm x 405mm x 225mm& 10- IP55 conforming to IEC 60529 (on the internal circuit)& 10- IP24 conforming to IEC 60529 (on the external circuit)& 10- Technology: Air/Air& 10- Non-reversible& 10- Cooling capacity - 2kW& 10- SEER - 1.9806& 10- Refrigerant used - R513a& 10- Refill threshold - Cannot Refill& 10- Where Used - Industrial
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 7542.113
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Height Nominal
- 780 mm
- Width Nominal
- 345 mm
- [Us] Rated Supply Voltage
- 380...415 V 2 phases 50 Hz EN/IEC400/460 V +/- 6 % 2 phases 60 Hz UL
- Package Weight(Lbs)
- 30.000 kg
- Warranty (In Months)
- 18
- Customs Code
- 8415103040
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]2.8666033061614034, 3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]4.3548642538197155, 4 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]3 052 kg CO2 eq., 3051.9999052282033
Local Publishable Date2025-07-10
Stocking FlagY
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Cooling Gas TypeR513a 0.200 kg)
Energy Efficiency Ratio2
Inrush Current4 A
Mounting Locationside
Noise Level76 dB
Pressure30 bar
Product Destinationfor enclosure
Product Or Component Typecooling unit
RangeClimaSys
Software Versionv6.2.5-6
Temperature Setting Range20-50 °C 50/60 Hz
Type Of Ventilation Filterexternal circuit
Pep CodeENVPEP2301019EN
Pep Verification Date2025-12-01
Psr VersionPSR-0013-ed3-EN-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y22
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Malta, MT
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Europe, EU-27
Recyclability Potential In %89
Height Useful780 mm
Width Real345 mm
Nbr. Of Units In Pkg.1
Take-backNo
Other Technical GuideCPTG001_EN
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Air Flow
- internal circuit 330 m3/h 50/60 Hzexternal circuit 530 m3/h 50/60 Hz
- Circularity Profile
- ENVEOLI2301019EN
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2301019EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Directives2006/42/EC - machinery, 2014/30/EU - electromagnetic compatibility, 2011/65/EU - RoHS
Reach Free ShvcYes
Carbon Footprint3230.4102793591073
Ambient Air Temperature For Operationinside the enclosure 20-50 °C 50/60 Hzoutside the enclosure -20-55 °C 50/60 Hz
Environmental DisclosureENVPEP2301019EN
Ip Degree Of ProtectionIP55 IEC 60529 on the internal circuit)IP24 IEC 60529 on the external circuit)
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-12-01
Psr VersionPSR-0013-ed3-EN-2023 06 06
General Attributes
- Product Or Component Type
- cooling unit
ETIM
- ETIM 8
- EC000855
ETIM 9EC000855
Surge Protection And Filtering Attributes
- Type Of Ventilation Filter
- external circuit
