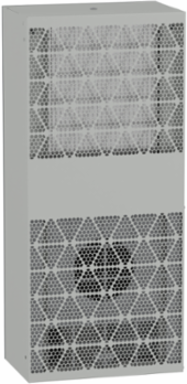

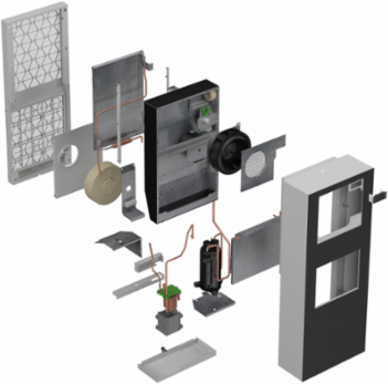

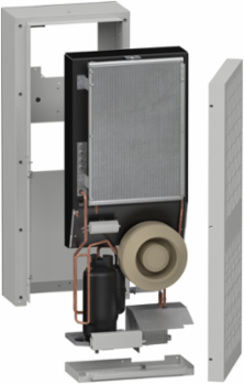

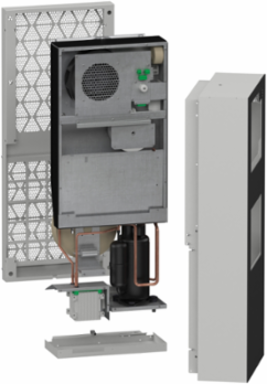

Schneider Electric NSYCUHD1KDG Outdoor Connected Cooling Unit, Climasys CU, 1kW, 230V, 50/60Hz, IP55
Schneider Electric NSYCUHD1KDG Outdoor Connected Cooling Unit, Climasys CU, 1kW, 230V, 50/60Hz, IP55
- MPN: NSYCUHD1KDG
- PPN: SCH-NSYCUHD1KDG
- UNSPSC: 40101704
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2878.08/ EA
Description
Outdoor Connected Cooling Unit, Climasys CU, 1kW, 230V, 50/60Hz, IP55
Features
- Alarm, operation & setting info available remotely and locally.

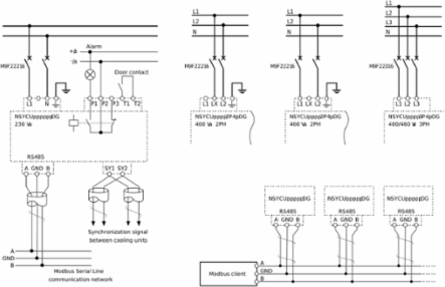

- Simple, open and easy, native connectivity with Modbus RTU communication.
- Electronic thermostat with touch screen display
- Unique combination of optimized Energy Efficiency Ratio and reduced sizes & weight
- Passive water condensate evaporator for all Side Cooling Units strictly above 800 W
- IP55 - Internal IP
- Easy product selection with ProClima Web associated with SEE Electrical
Specifications
Physical Attributes
- Color
- Gray RAL 7035)
Conformance Attributes
- Product Certifications
- UL, IEC, EN
StandardsEN/ISO 12100, EN 60335-1, EN 60335-2-40, EN 61000-3-2, EN 61000-3-3, EN 61000-6-2, EN 61000-6-3, EN/IEC 63000:2018, EN 14511
Complementary Attributes
- Line Rated Current
- 2.3 A
Rated Power In W990 W
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Cooling Power
- 990 W 50/60 Hz L35-L35, 710 W 50/60 Hz L35-L50
- Us Rated Supply Voltage2
- 220...240 V 1 phase 50 Hz EN/IEC, 230 V +/- 6 % 1 phase 60 Hz UL
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 47 kg CO2 eq., 47.172341804565875
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 92 kg CO2 eq., 92.06130220645139
- Us Rated Supply Voltage5
- 220...240 V 1 phase 50 Hz EN/IEC, 230 V +/- 6 % 1 phase 60 Hz UL
- Local Publishable Date
- 2025-07-10
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2301019EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant
- China ROHS In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Control Type
- electronic controller
- F Gas Free
- Product containing F-gas
- Inrush Current
- 6 A
- Mounting Location
- side
- Noise Level
- 76 dB
- Pressure
- 30 bar
- Product Destination
- for enclosure
- Protection Type
- 15 A (T)
- Returnability
- No
- Temperature Setting Range
- 20-50 °C 50/60 Hz
- Type Of Ventilation Filter
- external circuit
- Medium Desc
- Outdoor Connected Cooling Unit, Climasys CU, 1kW, 230V, 50/60Hz, IP55
- Product Kit Identifier
- N
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional Unit Description
- To produce 2 kW of cooling, according to the appropriate usage scenario defined in the EN 14825 standard and during the 22-year reference lifetime of the product.& 10& 10- Product dimensions 1000mm x 405mm x 225mm& 10- IP55 conforming to IEC 60529 (on the internal circuit)& 10- IP24 conforming to IEC 60529 (on the external circuit)& 10- Technology: Air/Air& 10- Non-reversible& 10- Cooling capacity - 2kW& 10- SEER - 1.9806& 10- Refrigerant used - R513a& 10- Refill threshold - Cannot Refill& 10- Where Used - Industrial
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Low voltage; 2020; Malta, MT
- Energy Model Use B6 2
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Power Consumption In W502 W 50/60 Hz, L35-L35, 561 W 50/60 Hz, L35-L50
Carbon Footprint Of The Distribution Phase A42.3315040223446086, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A53.5419562597733694, 4 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B63 034 kg CO2 eq., 3033.6149912760766
Local Data StatusPublishable
Legacy WEEE ScopeIn
EOLI Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdCOMPLIANT
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Function OptionStandard
Cooling Gas TypeR513a 0.200 kg)
Incomer DeviceM9F23116
Materialsteel
Mounting Modeby screws
Package Weight Lbs24.400 kg
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typecooling unit
RangeClimaSys
Sustainable PackagingNo
Total Lifecycle Carbon Footprint3 179 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Stocking FlagY
Pep CodeENVPEP2301019_V2
Pep Verification Date2025-12-01
Psr VersionPSR-0013-ed3-EN-2023 06 06
Data Sourceextrapolated product
Functional Unit Unitunit
Energy Model Installation A5 2Electricity Mix; Low voltage; 2020; Europe, EU-27
Energy Model End Of Life C1 C4 2Electricity Mix; Low voltage; 2020; Europe, EU-27
Product NameCU
Environment Attributes Main
- Take Back
- No, Nej
- Air Flow
- internal circuit 330 m3/h 50/60 Hz, external circuit 530 m3/h 50/60 Hz
- Directives
- 2006/42/EC - machinery, 2014/30/EU - electromagnetic compatibility, 2011/65/EU - RoHS
- IP Degree Of Protection
- IP55 IEC 60529 on the internal circuit), IP24 IEC 60529 on the external circuit)
- Reach Free SHVC
- Yes
- Carbon Footprint
- 3178.7220955692114
- Environmental Disclosure
- ENVPEP2301019_V2
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of SVHC
- Yes
- Pep Code
- ENVPEP2301019_V2
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Ambient Air Temperature For Operationinside the enclosure 20-50 °C 50/60 Hz, outside the enclosure -20-55 °C 50/60 Hz
EU ROHS DirectiveCompliant , Compliant
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Circularity ProfileENVEOLI2301019EN
F Gas Usage PerformanceProduct containing F-gas
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-12-01
Psr VersionPSR-0013-ed3-EN-2023 06 06
General Attributes
- Product Or Component Type
- cooling unit
Surge Protection And Filtering Attributes
- Type Of Ventilation Filter
- external circuit
Specifications
- Country of Origin
- United States

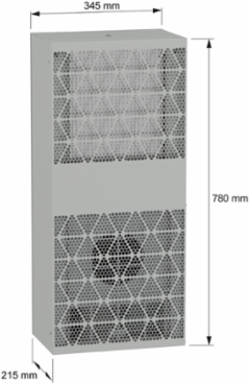

Depth215 mm
