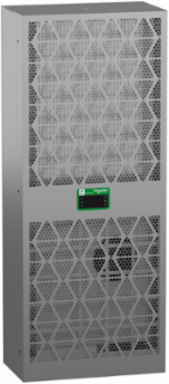

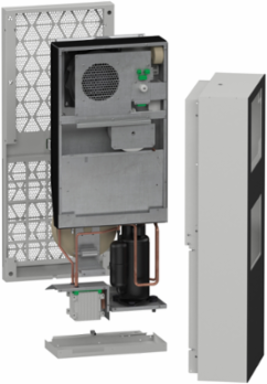

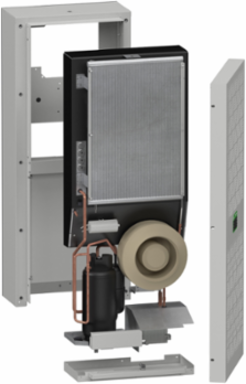

Schneider Electric NSYCUX1K6DG Side Connected Cooling Unit, Climasys CU, Stainless Steel, 1k6W, 230V, 50/60Hz, IP55
- MPN: NSYCUX1K6DG
- PPN: SCH-NSYCUX1K6DG
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

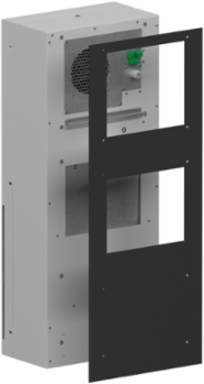

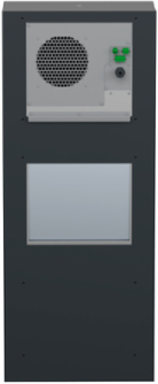

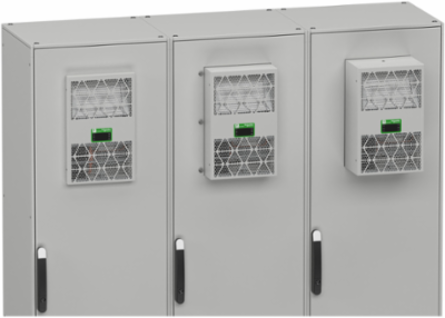

This new Side Connected Cooling Unit, designed by Schneider Electric, is perfectly adapted for Automation & Control and Electrical distribution panels, installed in office and industrial indoor environments. It’s smart, compact, and reliable. It can be mounted full / half-flush or surface depending on the space available in the panel or in the room. For international business purpose, it’s compliant to IEC14511 and UL60335-1 & UL60335-2-40. This cooling device is made by Stainless Steel, offering an internal IP55. Its cooling capacity L35-35 is 1650W according to EN 14511. Its power voltage is 230V, 50/60Hz, 1 phase. Its native Modbus connectivity is 100% compatible with any Scada system. Remote alarms and operation data makes manufacturing process more dependable with fewer downtimes, with quicker and easier problem fixing, and electrical components expended lifespan. The new Connected Cooling Units are also associated with Software’s and Services, like ProClima Web or IGE XAO suits. By using these tools, in only few minutes, it’s possible to select and optimize one Thermal management solution, and to design one panel (with its enclosures, devices and Thermal solution), with 3D and 2D drawings. Also, the Schneider Electric EcoStruxure Apps and analytics facilitates process supervision with real life data and action recommendations for more efficient operation and maintenance (preventive and predictive).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Malta
- Width
- 15.94 in
Height39.37 in
Depth225 mm
Physical Attributes
- Color
- Stainless Steel
Complementary Attributes
- Line Rated Current
- 3.1 A
Rated Power In W1620 W
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL, IEC, EN
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 83 kg CO2 eq., 82.74492742768112
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 161 kg CO2 eq., 161.48457928016882
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Cooling Gas Type
- R513a 0.333 kg)
- Energy Efficiency Ratio
- 2.4
- Inrush Current
- 16.0 A
- Mounting Location
- side
- Noise Level
- 76 dB
- Pressure
- 30 bar
- Product Destination
- for enclosure
- Product Or Component Type
- cooling unit
- Range
- ClimaSys
- Software Version
- v6.2.5-6
- Temperature Setting Range
- 20-50 °C 50/60 Hz
- Type Of Ventilation Filter
- optional external circuit filter
- Pep Code
- ENVPEP2301019EN
- Pep Verification Date
- 2025-12-01
- Psr Version
- PSR-0013-ed3-EN-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 22
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Malta, MT
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Recyclability Potential In %
- 89
- Height Useful
- 1000 mm
- Width Real
- 405 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Other Technical Guide
- CPTG001_EN
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]4.089687383456936, 4 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]6.212939668782795, 6 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]3 094 kg CO2 eq., 3094.022565690208
Local Publishable Date2025-07-10
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2301019EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2307
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard

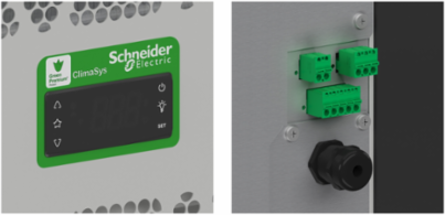

Control Typeelectronic controller
Cooling Power1620 W 50/60 Hz L35-L351340 W 50/60 Hz L35-L50
Incomer DeviceM9F23116
Materialstainless steel
Mounting Modeby screws
Power Consumption In W670 W 50/60 Hz, L35-L35770 W 50/60 Hz, L35-L50
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product NameCU
Protection Type15 A (T)
ReturnabilityNo
Sustainable PackagingYes
Total Lifecycle Carbon Footprint3 349 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review

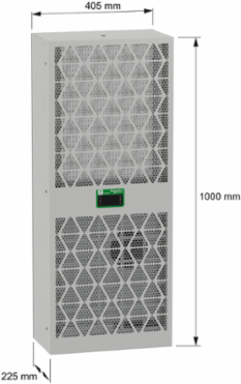

Functional-unit DescriptionTo produce 2 kW of cooling, according to the appropriate usage scenario defined in the EN 14825 standard and during the 22-year reference lifetime of the product.& 10& 10- Product dimensions 1000mm x 405mm x 225mm& 10- IP55 conforming to IEC 60529 (on the internal circuit)& 10- IP24 conforming to IEC 60529 (on the external circuit)& 10- Technology: Air/Air& 10- Non-reversible& 10- Cooling capacity - 2kW& 10- SEER - 1.9806& 10- Refrigerant used - R513a& 10- Refill threshold - Cannot Refill& 10- Where Used - Industrial
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh7542.113
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2020; Europe, EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2020; Europe, EU-27
Height Nominal1000 mm
Width Nominal405 mm
[Us] Rated Supply Voltage220...240 V 1 phase 50 Hz EN/IEC230 V +/- 6 % 1 phase 60 Hz UL
Package Weight(Lbs)42.800 kg
Warranty (In Months)18
Customs Code8415103040
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Directives
- 2006/42/EC - machinery, 2014/30/EU - electromagnetic compatibility, 2011/65/EU - RoHS
- Reach Free Shvc
- Yes
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- inside the enclosure 20-50 °C 50/60 Hzoutside the enclosure 5-55 °C 50/60 Hz
- Environmental Disclosure
- ENVPEP2301019EN
- Ip Degree Of Protection
- IP55 IEC 60529 on the internal circuit)IP24 IEC 60529 on the external circuit)
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-12-01
- Psr Version
- PSR-0013-ed3-EN-2023 06 06
Air Flowinternal circuit 1000 m3/h 50/60 Hz, external circuit 1000 m3/h 50/60 Hz
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint3348.5546994502974
Circularity ProfileENVEOLI2301019EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2301019EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- cooling unit
ETIM
- ETIM 8
- EC000855
ETIM 9EC000855
Surge Protection And Filtering Attributes
- Type Of Ventilation Filter
- optional external circuit filter
