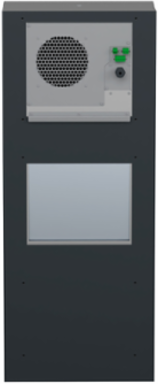

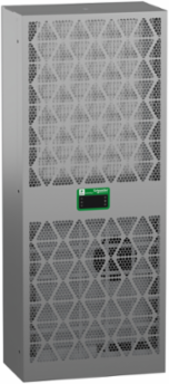

Schneider Electric NSYCUX2K3P4DG Side Connected Cooling Unit, Climasys CU, Stainless Steel, 2kW, 3 poles, 380/460V, 50/60Hz, IP55
- MPN: NSYCUX2K3P4DG
- PPN: SCH-NSYCUX2K3P4DG
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

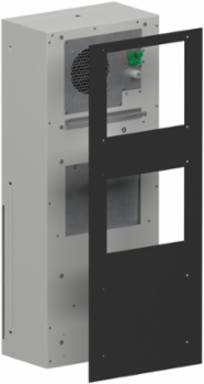

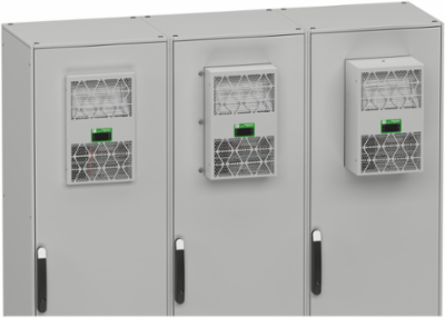

This new Side Connected Cooling Unit, designed by Schneider Electric, is perfectly adapted for Automation & Control and Electrical distribution panels, installed in office and industrial indoor environments. It’s smart, compact, and reliable. It can be mounted full / half-flush or surface depending on the space available in the panel or in the room. For international business purpose, it’s compliant to IEC14511 and UL60335-1 & UL60335-2-40. This cooling device is made by Stainless Steel, offering an internal IP55. Its cooling capacity L35-35 is 2000W according to EN 14511. Its power voltage is 380/460V, 50/60Hz, 3 phases. Its native Modbus connectivity is 100% compatible with any Scada system. Remote alarms and operation data makes manufacturing process more dependable with fewer downtimes, with quicker and easier problem fixing, and electrical components expended lifespan. The new Connected Cooling Units are also associated with Software’s and Services, like ProClima Web or IGE XAO suits. By using these tools, in only few minutes, it’s possible to select and optimize one Thermal management solution, and to design one panel (with its enclosures, devices and Thermal solution), with 3D and 2D drawings. Also, the Schneider Electric EcoStruxure Apps and analytics facilitates process supervision with real life data and action recommendations for more efficient operation and maintenance (preventive and predictive).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Malta
- Width
- 15.94 in
Height39.37 in
Depth225 mm
Physical Attributes
- Color
- Stainless Steel
Complementary Attributes
- Line Rated Current
- 1.8 A
Rated Power In W1940 W
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL, IEC, EN
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 89 kg CO2 eq., 89.31812259716979
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 174 kg CO2 eq., 174.31279352205135
- Local Data Status
- Publishable
- Return Indicator
- N
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2301019EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2307
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Control Type

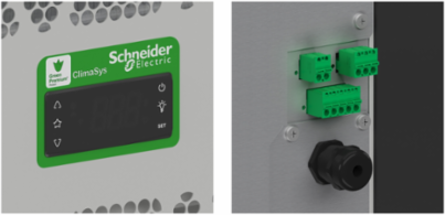

- electronic controller
- Cooling Power
- 1940 W 50/60 Hz L35-L351580 W 50/60 Hz L35-L50
- Incomer Device
- M9F23316
- Material
- stainless steel
- Mounting Mode
- by screws
- Power Consumption In W
- 980 W 50/60 Hz, L35-L351130 W 50/60 Hz, L35-L50
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Name
- CU
- Protection Type
- 3 phase 15 A (T)
- Returnability
- No
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 3 380 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description

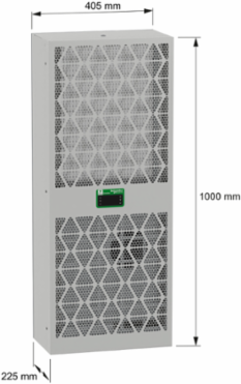

- To produce 2 kW of cooling, according to the appropriate usage scenario defined in the EN 14825 standard and during the 22-year reference lifetime of the product.& 10& 10- Product dimensions 1000mm x 405mm x 225mm& 10- IP55 conforming to IEC 60529 (on the internal circuit)& 10- IP24 conforming to IEC 60529 (on the external circuit)& 10- Technology: Air/Air& 10- Non-reversible& 10- Cooling capacity - 2kW& 10- SEER - 1.9806& 10- Refrigerant used - R513a& 10- Refill threshold - Cannot Refill& 10- Where Used - Industrial
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 7542.113
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Height Nominal
- 1000 mm
- Width Nominal
- 405 mm
- [Us] Rated Supply Voltage
- 380...415 V 3 phase 50 Hz EN/IEC400/460 V +/- 6 % 3 phase 60 Hz UL
- Package Weight(Lbs)
- 46.200 kg
- Warranty (In Months)
- 18
- Customs Code
- 8415103040
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]4.414569091488561, 4 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]6.706490950882362, 7 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]3 105 kg CO2 eq., 3105.184834875428
Local Publishable Date2025-07-10
Stocking FlagY
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Cooling Gas TypeR513a 0.445 kg)
Energy Efficiency Ratio2
Inrush Current13 A
Mounting Locationside
Noise Level76 dB
Pressure30 bar
Product Destinationfor enclosure
Product Or Component Typecooling unit
RangeClimaSys
Software Versionv6.2.5-6
Temperature Setting Range20-50 °C 50/60 Hz
Type Of Ventilation Filteroptional external circuit filter
Pep CodeENVPEP2301019EN
Pep Verification Date2025-12-01
Psr VersionPSR-0013-ed3-EN-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y22
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Malta, MT
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Europe, EU-27
Recyclability Potential In %89
Height Useful1000 mm
Width Real405 mm
Nbr. Of Units In Pkg.1
Take-backNo
Other Technical GuideCPTG001_EN
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 3379.93681103702
- Ambient Air Temperature For Operation
- inside the enclosure 20-50 °C 50/60 Hzoutside the enclosure 5-55 °C 50/60 Hz
- Environmental Disclosure
- ENVPEP2301019EN
- Ip Degree Of Protection
- IP55 IEC 60529 on the internal circuit)IP24 IEC 60529 on the external circuit)
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-12-01
- Psr Version
- PSR-0013-ed3-EN-2023 06 06
Directives2006/42/EC - machinery, 2014/30/EU - electromagnetic compatibility, 2011/65/EU - RoHS
Reach Free ShvcYes
Mercury FreeYes
Air Flowinternal circuit 890 m3/h 50/60 Hzexternal circuit 1200 m3/h 50/60 Hz
Circularity ProfileENVEOLI2301019EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2301019EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- cooling unit
ETIM
- ETIM 8
- EC000855
ETIM 9EC000855
Surge Protection And Filtering Attributes
- Type Of Ventilation Filter
- optional external circuit filter
