Panduit STP6X10BU CU Patch Crd,Cat 6A,S/FTP,10ft,BU
- MPN: STP6X10BU
- UPC: 074983011858
- PPN: PAN-STP6X10BU
- UNSPSC: 43223303
CAD
$51.82
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

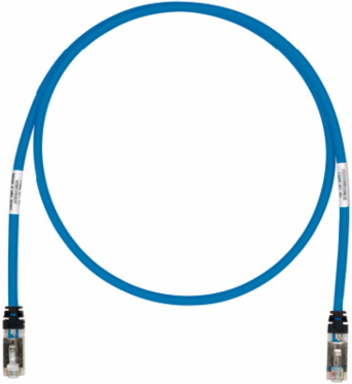

This TX6A™ 10Gig Cat 6A STP Patch Cord is a 10-Foot, Blue cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable and with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, China, Romania
- Product Segment
- EDI-ENT
- Color
- Blue
- Product Type
- Shielded Patch Cord
- Minimum Operating Temperature (°F)
- 14
- Minimum Storage Temperature (°F)
- -40
- Application
- (1) Stacking switched and switch-to-switch links(2) Aggregation of Gigabit Ethernet channels(3) Streaming video(4) Scientific modeling(5) Storage area networks(6) Real-time intensive financial transactions(7) Animation(8) Medical imaging
- Cable Construction
- S/FTP
- Performance Level
- Category 6A
- PoE Compatibility
- PoE
- Maximum Operating Temperature (°C)
- 60
- RapidID™ Enabled
- Yes
- Jacket Material
- LSZH Material
- Maximum Storage Temperature (°C)
- 70
- Conductor Type
- Stranded
- Maximum Operating Temperature (°F)
- 140
- Shield Type
- Shielded (STP)
Any Reason Not to SellN
Sub BrandPan-Net®
Minimum Operating Temperature (°C)-10
Overall Length (ft.)10
Boot ColorBlack
Nominal Cable Outside Diameter (mm)6.1
Plug Housing MaterialPolycarbonate
Flammability RatingCM/LSZH
Nominal Cable Outside Diameter (In.)0.24
Plug TypeMeets IEC 60603-7
Minimum Storage Temperature (°C)-40
Wiring SchemeT568B
IEC Variant60603-7
Maximum Storage Temperature (°F)158
Overall Length (m)3.05
Conductor Gauge26 AWG
Packaging Details
- UPC
- 07498301185
- Standard Package Volume Ft3
- 0.0347
- Std Package Height In
- 1.3
- Std Package Length In
- 8.2
- Std Package Width In
- 8
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 1
- Standard Carton Volume Ft3
- 0.3474
- Std Carton Height In
- 4.5
- Std Carton Length In
- 13.6
- Std Carton Width In
- 10.3
- Std Ctn Qty
- 10
- EAN
- 00074983011858
- ARRA Compliant
- Y
- Hazardous Material Flag
- N
- Pallet Quantity
- 1,200
- Pallet Weight
- 445.6800
GTIN Package00074983011858
Standard Package Weight Pounds0.3714
Std Package Height MM33.02
Std Package Length MM208.28
Std Package Width MM203.2
UOM EA PKEA
GTIN Carton50074983011853
Standard Carton Weight Pounds3.7140
Std Carton Height MM114.3
Std Carton Length MM345.44
Std Carton Width MM261.62
Min. Order UOMPiece
REACH StatusN
Mercury Content IndicatorN
Min Order Qty10.0000
Pallet Volume41.693456
RoHS CompliantCompliant
