Panduit STP6X5BU CU Patch Crd,Cat 6A,S/FTP,5ft,BU
- MPN: STP6X5BU
- UPC: 074983011803
- PPN: PAN-STP6X5BU
- UNSPSC: 43223303
CAD
$42.73
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

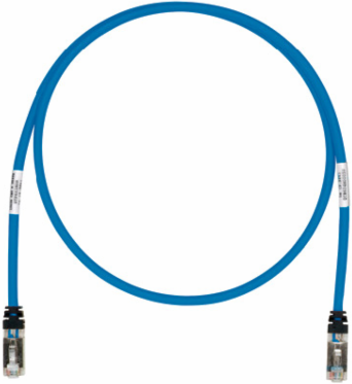

This TX6A™ 10Gig Cat 6A STP Patch Cord is a 5-Foot, Blue cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable and with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Costa Rica, Mexico, China, Romania |
|---|---|
| Product Segment | EDI-ENT |
| Overall Length (ft.) | 5 |
| Minimum Storage Temperature (°C) | -40 |
| Wiring Scheme | T568B |
| Minimum Operating Temperature (°F) | 14 |
| Flammability Rating | CM/LSZH |
| Maximum Operating Temperature (°C) | 60 |
| Sub Brand | Pan-Net® |
| Jacket Material | LSZH Material |
| Boot Color | Black |
| Performance Level | Category 6A |
| Maximum Operating Temperature (°F) | 140 |
| Conductor Type | Stranded |
| IEC Variant | 60603-7 |
| Plug Type | Meets IEC 60603-7 |
| Shield Type | Shielded (STP) |
| Any Reason Not to Sell | N |
|---|---|
| Nominal Cable Outside Diameter (mm) | 6.1 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°F) | -40 |
| Plug Housing Material | Polycarbonate |
| Overall Length (m) | 1.52 |
| Nominal Cable Outside Diameter (In.) | 0.24 |
| PoE Compatibility | PoE |
| Cable Construction | S/FTP |
| Minimum Operating Temperature (°C) | -10 |
| RapidID™ Enabled | Yes |
| Color | Blue |
| Maximum Storage Temperature (°C) | 70 |
| Product Type | Shielded Patch Cord |
| Application | (1) Stacking switched and switch-to-switch links(2) Aggregation of Gigabit Ethernet channels(3) Streaming video(4) Scientific modeling(5) Storage area networks(6) Real-time intensive financial transactions(7) Animation(8) Medical imaging |
| Conductor Gauge | 26 AWG |
Packaging Details
| UPC | 07498301180 |
|---|---|
| Standard Package Volume Ft3 | 0.0221 |
| Std Package Height In | .85 |
| Std Package Length In | 9.2 |
| Std Package Width In | 8.25 |
| Std. Pkg. UOM | Piece |
| Std. Pkg. Qty. | 1 |
| Standard Carton Volume Ft3 | 0.2208 |
| Std Carton Height In | 3.9 |
| Std Carton Length In | 11.2 |
| Std Carton Width In | 9.15 |
| Std Ctn Qty | 10 |
| EAN | 00074983011803 |
| ARRA Compliant | Y |
| Hazardous Material Flag | N |
| Pallet Quantity | 2,240 |
| Pallet Weight | 490.1120 |
| GTIN Package | 00074983011803 |
|---|---|
| Standard Package Weight Pounds | 0.2188 |
| Std Package Height MM | 21.59 |
| Std Package Length MM | 233.68 |
| Std Package Width MM | 209.55 |
| UOM EA PK | EA |
| GTIN Carton | 50074983011808 |
| Standard Carton Weight Pounds | 2.1880 |
| Std Carton Height MM | 99.06 |
| Std Carton Length MM | 284.48 |
| Std Carton Width MM | 232.41 |
| Min. Order UOM | Piece |
| REACH Status | N |
| Mercury Content Indicator | N |
| Min Order Qty | 10.0000 |
| Pallet Volume | 49.461806 |
| RoHS Compliant | Compliant |
