Homac 2042-1 CU TP TRAN STUD ADPTR 4HOLE
Homac 2042-1 CU TP TRAN STUD ADPTR 4HOLE
- MPN: 2042-1
- UPC: 783786763535
- PPN: T-B-2042-1
- UNSPSC: 39121443
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$181.17/ EA
Description

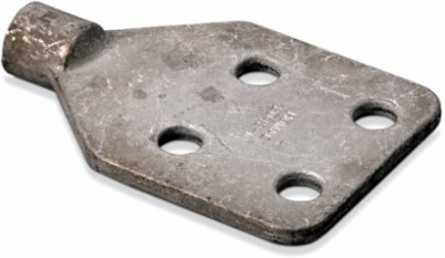

Copper Tin-Plated Threaded Transformer Stud Adapter for NEMA pad-style connections - four-hole transformer stud adapter, Stud size 5/8-11 UNC-2B with 1 inch Outside Diameter, 5.375 inch long x 3.5 inch wide with .25 inch thick pad. Hole Spacing 1.75 inch center to center. Hole size .562 inch diameter.
Specifications
Additional Information
- Application
- NEMA Pad-Style Connections
- Connection Type
- Threaded
- Insulation Material
- None
- Product Name
- ELECTRICAL CONNECTOR <1000V
- Size
- 5.375 inch long x 3.5 inch wide with .25 inch thick pad.
- Surface Finishing
- Tin Plated
Brand / LabelHomac
Effective Date20080619
MaterialCopper
Product TypeThreaded Transformer Adapter - Stud to Flat
Special FunctionsStud size 5/8-11 UNC-2B
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4663 >> Electrical underground bus connector
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
