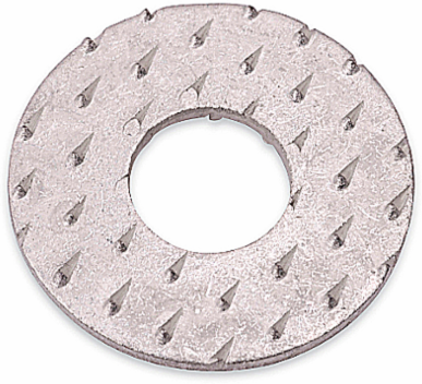

Color-Keyed DTW12 Transition Washer
- MPN: DTW12
- UPC: 786210869629
- PPN: T-B-DTW12
CAD
$5.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Transition Washer for Connecting Aluminum/Aluminum, Aluminum/Copper and Aluminum/Copper Lugs and Bus Bar, Outer Diameter 31.8mm (1.25 Inches), Inner Diameter 14.2mm (0.56 Inch), Stud Size 1/2 Inch, Copper Alloy, Tin Plated
Features
- Teeth on the transition washers penetrate aluminum and copper oxides, enabling copper to aluminum connections to be made in a bolted joint without the use of inhibiting compounds.
- Transition washers also accommodate the difference in thermal expansion between copper and aluminum, and enhances the efficiency of bolted grounding connections.
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 31161807 Flat washers
- Brand Name
- Color-Keyed
- Application
- Teeth on the transition washers penetrate aluminum and copper oxides, enabling copper to aluminum connections to be made in a bolted joint without the use of inhibiting compounds.
- Material
- Copper
- Thickness
- 0.035 Inch/0.89mm
- Inside Diameter
- 0.56 Inch/14.2mm
- Color
- Silver
IGCC2885 Flat washers
TypeTransition Washer
StandardUL E9809
FinishTin Plated
Outside Diameter1.25 Inches/31.8mm
Fits Bolt Sizes1/2 Inch
European Specifications (ETIM)
- ETIM
- EC002345 Serrated lock washer
- Material quality
- Other
- Model
- Double toothing
- Outer diameter
- 31.8mm
MaterialOther
Surface protectionOther
Inner diameter14.2mm
Thickness0.89mm
Packaging
- Inner Quantity
- 100
- Outer Quantity
- 1000
- Weight Uom
- 1.13 lbs. per 100
Inner Dimensions (inches)3.3x2.8x2.3
Outer Dimensions (inches)12.6x4.1x6.4
