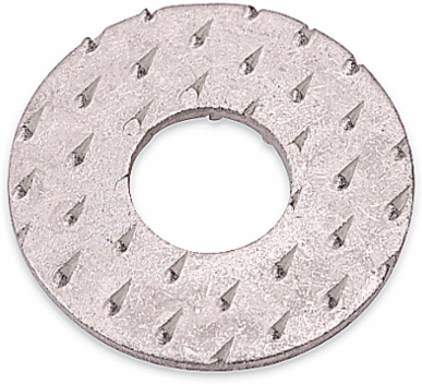

Color-Keyed DTW58 Transition Washer
- MPN: DTW58
- UPC: 786210869858
- PPN: T-B-DTW58
CAD
$10.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Transition Washer for Connecting Aluminum/Aluminum, Aluminum/Copper and Aluminum/Copper Lugs and Bus Bar, Outer Diameter 35.6mm (1.4 Inches), Inner Diameter 17.3mm (0.68 Inch), Stud Size 5/8 Inch, Copper Alloy, Tin Plated
Features
- Teeth on the transition washers penetrate aluminum and copper oxides, enabling copper to aluminum connections to be made in a bolted joint without the use of inhibiting compounds.
- Transition washers also accommodate the difference in thermal expansion between copper and aluminum, and enhances the efficiency of bolted grounding connections.
Documentation & Downloads
Specifications
European Specifications (ETIM)
- ETIM
- EC002345 Serrated lock washer
- Material quality
- Other
- Model
- Double toothing
- Outer diameter
- 35.6mm
MaterialOther
Surface protectionOther
Inner diameter17.3mm
Thickness0.89mm
North American Specifications (UNSPSC)
- UNSPSC
- 31161807 Flat washers
- Brand Name
- Color-Keyed
- Standard
- UL E9809
- Finish
- Tin Plated
- Outside Diameter
- 1.4 Inches/35.6mm
- Fits Bolt Sizes
- 5/8 Inch
IGCC2885 Flat washers
TypeTransition Washer
MaterialCopper Alloy
Thickness0.035 Inch/0.89mm
Inside Diameter0.68 Inch/17.3mm
Packaging
- Inner Quantity
- 100
- Outer Quantity
- 1000
- Weight Uom
- 6.25 lbs. per 100
Inner Dimensions (inches)3.5x3x3
Outer Dimensions (inches)16.4x7.5x3.5
