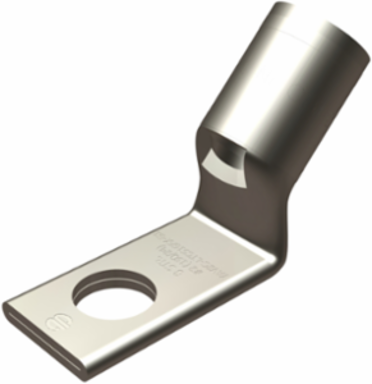

Burndy YAV2CLTC38FX45 Copper Tubing Hylug, 600V-35kV, 3/8 Inch Stud, 1 Hole, 45 Degree Tongue, 10 Die Index

MPN: YAV2CLTC38FX45
UPC: 781810022450
PPN: BUR-518482

$24.88

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Cu Tubing Hylug, 1 Hole with Inspection Window, #2 WELD, 3(125/#24)-2(150/#24) DLO, #2 AWG Code, 60 Navy, 600V-35kV, 3/8" stud, Compression, 0.40 in BCD.

Features

Features: Compression Terminal, With Inspection Window, UL Listed 90 DEG C, 600 Volts to 35 kV, Tongue Angle: 45 DEG, Die Index: 10, Wire Strip Length: 11/16 IN

Documentation & Downloads

Specifications

Dimensions

Dimension - B Length fraction	5/8 in
Dimension - Bolt Hole Size inch	0.39 in
Dimension - Hole Size inch	0.40 in
Dimension - L Length Overall mm	45 mm
Dimension - N inch	0.41 in
Dimension - Pad Width inch	0.68 in
Dimension - Z inch	0.42 in

Dimension - B Length inch	0.63 in
Dimension - Height inch	1.04 in
Dimension - Hole Size mm	10 mm
Dimension - Length Overall inch	1.77 in
Dimension - Outside Diameter inch	0.46 in
Dimension - Strip Length inch	11/16
Physical Attribute - Tongue Angle	45 Degree

Certifications and Compliance

Certification - CSA Approved	No
Certification - UL Recognized	No
Standards - RoHS Compliance Status	CM

Certification - ETL	No
Certification - cULus	No
UL Listed	Yes

Conductor Related

Conductor - Copper DLO Size	3 (125/#24) DLO;2 (150/#24) DLO
Conductor - Copper Flex H Size	2 AWG
Conductor - Copper Flex K Size	2 AWG
Conductor - Copper Solid Size	2 AWG
Conductor - Copper Str Size	2 AWG
Conductor - Material	Copper

Conductor - Copper Flex G Size	2 AWG
Conductor - Copper Flex I Size	2 AWG
Conductor - Copper Flex M Size	2 AWG
Conductor - Copper Str Navy Size	60 (37) Navy
Conductor - CopperWeld Str Size	2 A AWG;2 F AWG;2 G AWG;2 J AWG;2 K AWG;2 N AWG;2 P AWG

General

Application	For Flex Conductor
Connector Type	Terminal
Feature - Barrel Style	Chamfered
Material	Copper
Physical Attribute - Tongue Type	Standard
Plating Type	Tin - Electro Plated
Trade Name	HYLUG™
UPC	781810022450

Color Code	Brown
Die Index	10
Feature - Barrel Type	Standard
Physical Attribute - Number of Holes	1
Plated	Y
Sub Brand	TERMINALS
Type	Standard Barrel, Tin Plated
UPC 12 Digit	7818100224500
