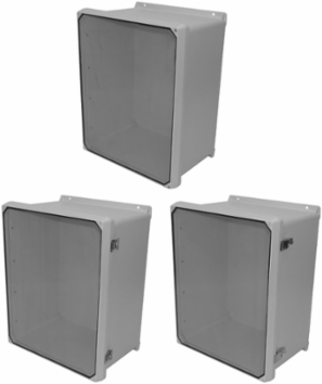

Nvent Hoffman CVJ2016HWLL2 Clearview Flat Cover, 21.32x17.32x11.57 Inch, Light Gray Fiberglass, NEMA Type 3
Nvent Hoffman CVJ2016HWLL2 Clearview Flat Cover, 21.32x17.32x11.57 Inch, Light Gray Fiberglass, NEMA Type 3
- MPN: CVJ2016HWLL2
- UPC: 635394581110
- PPN: HOF-CVJ2016HWLL2
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1360.15/ EA
Description
VJ enclosures feature a polycarbonate window with a larger viewing area than traditional solutions. This CVJ Flat Cover with Clearview Window Type 4X, CVJ2016HWLL2 item measures 21.32x17.32x11.57 with a material Fiberglass color Lt Gray.
Features
- Available sized from 6x6 (152x152mm) to 30x24 (762x610mm)
- All VJ enclosures were designed to meet the Joint Industrial Council (JIC) standards in the United States
- Enclosures are maintenance free and corrosion resistant
- Made from hot compression molded halogen free, self extinguishing fiberglass reinforced polyester (FRP)
- Withstand continuous temperatures from 58°F to 302°F (-50°C to 150°C) and momentary exposure to temperatures up to 392°F (200°C)
- Polyurethane foam-in-place gasket
- 1/4” transparent Lexan™ window
- Molded mounting flanges and cover corner ribs increase enclosure strength
- Enclosures can be modified to customer specifications
Specifications
Specifications
- BABA
- Yes, BABA Compliant
- Width (W)
- 440
- Protection Rating
- NEMA Type 3
- Material
- Fiberglass
- Color
- Light Gray
- Weight
- 21
Height (H)542
Depth (D)294
Product FamilyVJ
FinishSmooth Matte
Color CodeRAL 7035
