Mersen E1056670 Protistor Cylindrical Fuse-Link 22x58, 50A, 690VAC, 160kA Breaking Capacity
- MPN: E1056670
- PPN: FER-E1056670
CAD
$141.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

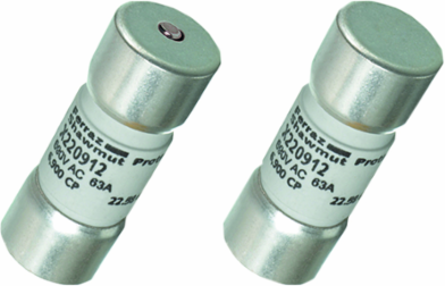

These Protistor® size 22x58 have been designed to protect power semi conductors, complying with standard IEC 60269-4. They are extremely high interrupting rating fuses with large band of ratings (current rating 25 to 135A). Two models are existing: with or without striker.
Specifications
Key Specifications
| Rated voltage AC IEC | 690 V |
|---|---|
| ROHS Compliant | Yes |
| Speed/Characteristic | aR |
| Mounting | Clip |
| Melting I2t | 217.6 A²s |
| Indication System | Yes |
| Connection/Terminal Material | Silver-Plated Copper |
| Body/Insulating Material | Ceramic |
| Length | 2.28 in |
| Ampere Rating | 50 A |
|---|---|
| AC or DC | AC |
| Fuse Size | 22x58 |
| Clearing I2t At Rated Voltage | 1850 A²s |
| AC Max I.R./Breaking Capacity: I1 | 160 kA |
| Indication System Type | Striker |
| Connection/Terminal Type | Ferrule |
| Power Dissipation at Rated Current Value | 13.4 W |
| Weight | 0.126 lb |
