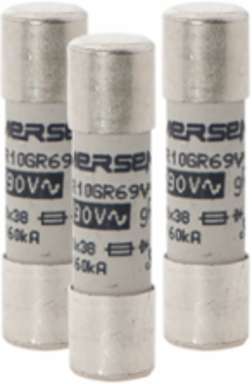

Mersen N1014565 Protistor 10x38 gR Cylindrical Fuse-Link, 1.25 Amp, 690VAC, Ceramic Body

MPN: N1014565
UPC: 3605340500882
PPN: FER-N1014565

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$57.56/ EA

Qty:

Loading add to cart quantity...

Description

The 10x38 gR cylindrical is a fast acting, full range fuse used in the protection of inverters, UPS, variable speed drives and other discrete semiconductor devices.

Specifications

Rated voltage AC IEC: 690 V

ROHS Compliant: Yes

Speed/Characteristic: gR

Mounting: Clip

Melting I2t: 0.18 A²s

Connection/Terminal Material: Silver-Plated Copper

Body/Insulating Material: Ceramic

Length: 1.54 in

Ampere Rating1.25 A

AC or DCAC

Fuse Size10x38

Clearing I2t At Rated Voltage0.55 A²s

AC Max I.R./Breaking Capacity: I1160 kA

Connection/Terminal TypeFerrule

Power Dissipation at Rated Current Value1.5 W

Weight0.018 lb
