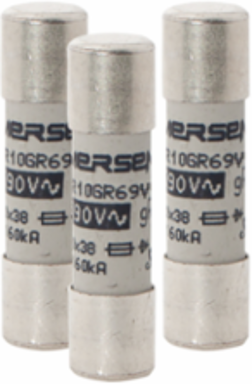

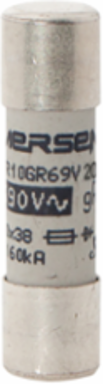

Mersen E1014580 Protistor® Cylindrical Fuse 10x38 Inch 20A 690VAC, Ceramic Body, gR Class

MPN: E1014580
UPC: 3605340501025
PPN: FER-E1014580

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$52.87/ EA

Qty:

Loading add to cart quantity...

Description

The 10x38 gR cylindrical is a fast acting, full range fuse used in the protection of inverters, UPS, variable speed drives and other discrete semiconductor devices.

Specifications

Rated voltage AC IEC: 690 V

ROHS Compliant: Yes

Speed/Characteristic: gR

Mounting: Clip

Melting I2t: 39 A²s

Connection/Terminal Material: Silver-Plated Copper

Body/Insulating Material: Ceramic

Length: 1.54 in

Ampere Rating20 A

AC or DCAC

Fuse Size10x38

Clearing I2t At Rated Voltage245 A²s

AC Max I.R./Breaking Capacity: I1160 kA

Connection/Terminal TypeFerrule

Power Dissipation at Rated Current Value3.7 W

Weight0.018 lb
