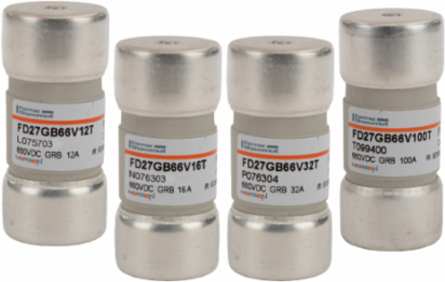

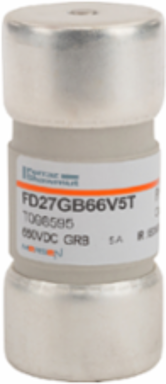

Mersen T098595 Protistor Cylindrical Fuse-Link gR 660VDC 27x60 5A 50kA
- MPN: T098595
- PPN: FER-T098595
CAD
$506.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mersen DC offers provide a very high performant protection for railway power and auxiliary circuits. Mersen DC Semiconductor fuse-links were developed to provide improved performance required by today's new DC equipment. These fuse-links are typically operated at more elevated temperature than other fuse type, have lower I²t to minimize damage to protected components on short circuits, lower watts loss and longer life.
Specifications
Key Specifications
| Rated voltage DC IEC | 660 V |
|---|---|
| ROHS Compliant | Yes |
| Speed/Characteristic | gR |
| Mounting | Clip |
| Design Details | gRB |
| Indication System Type | Striker |
| Connection/Terminal Type | Ferrule |
| Power Dissipation at Rated Current Value | 1.1 W |
| Weight | 0.176 lb |
| Ampere Rating | 5 A |
|---|---|
| AC or DC | DC |
| Fuse Size | 27x60 |
| Max. Rated Breaking Capacity DC | 50 kA |
| Indication System | Yes |
| Connection/Terminal Material | Silver-Plated Copper |
| Body/Insulating Material | Ceramic |
| Length | 2.37 in |
