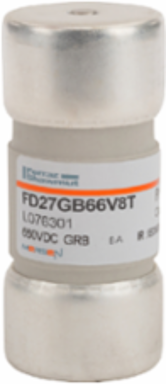

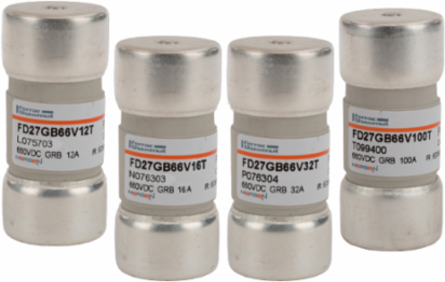

Mersen L076301 Protistor 27x60 gR Cylindrical Fuse-Link 660VDC 8A, Ceramic Insulation
- MPN: L076301
- PPN: FER-L076301
CAD
$720.53
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mersen DC offers provide a very high performant protection for railway power and auxiliary circuits. Mersen DC Semiconductor fuse-links were developed to provide improved performance required by today's new DC equipment. These fuse-links are typically operated at more elevated temperature than other fuse type, have lower I²t to minimize damage to protected components on short circuits, lower watts loss and longer life.
Specifications
Key Specifications
- Rated voltage DC IEC
- 660 V
- ROHS Compliant
- Yes
- Speed/Characteristic
- gR
- Mounting
- Clip
- Design Details
- gRB
- Indication System Type
- Striker
- Connection/Terminal Type
- Ferrule
- Power Dissipation at Rated Current Value
- 2 W
- Weight
- 0.176 lb
Ampere Rating8 A
AC or DCDC
Fuse Size27x60
Max. Rated Breaking Capacity DC50 kA
Indication SystemYes
Connection/Terminal MaterialSilver-Plated Copper
Body/Insulating MaterialCeramic
Length2.37 in
