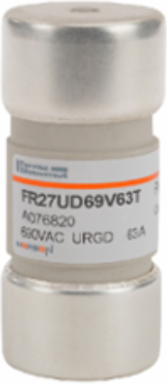

Mersen A076820 Protistor® 27x60 Fuses 63A 690VAC with Ceramic Insulation and Trip Indicator

MPN: A076820
UPC: 3605340019957
PPN: FER-A076820

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$273.49/ EA

Qty:

Loading add to cart quantity...

Description

Extremely high breaking capacity fuses: Protection of power semiconductors Complying with standard IEC 60269-1 and -4 600-690VAC voltage rating aR class according to IEC 60269-4 and VDE 636-23

Specifications

Rated voltage AC IEC: 690 V

ROHS Compliant: Yes

Speed/Characteristic: aR

Mounting: Clip

Melting I2t: 0.405 kA²s

Design Details: URGD

Indication System Type: Striker

Connection/Terminal Type: Ferrule

Power Dissipation at Rated Current Value: 22 W

Weight: 0.176 lb

Ampere Rating63 A

AC or DCAC

Fuse Size27x60

Clearing I2t At Rated Voltage1.84 kA²s

AC Max I.R./Breaking Capacity: I1200 kA

Indication SystemYes

Connection/Terminal MaterialSilver-Plated Copper

Body/Insulating MaterialCeramic

Length2.37 in
