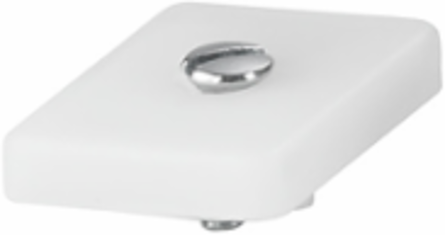

Weidmuller 0244060000 Multipin Terminal Strip, 4 Connections, PA 66, 7.7 mm Depth
- MPN: 0244060000
- PPN: WDM-0244060000
CAD
$0.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Multipin terminal strip, Single- and multi-pole terminal strip, Rated cross-section: Screw connection, Direct mounting
Documentation & Downloads
Specifications
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 18 mm
- Height
- 4,000 mm
- Depth
- 7.7 mm
- Net weight
- 1.72 g
Width (inches)0.709 inch
Height (inches)157.48 inch
Depth (inches)0.303 inch
Additional Technical Data
- Explosion-tested version
- No
- Type of mounting
- Direct mounting
Installation adviceDirect mounting
Material Data
- Material
- PA 66
- UL 94 flammability rating
- V-2
Colourwhite
Classifications
- ETIM 6.0
- EC001284
- eClass 9.0
- 27-14-11-06
- eClass 10.0
- 27-14-11-06
ETIM 7.0EC001284
eClass 9.127-14-11-06
UNSPSC30-21-18-11
System Specifications
- Version
- For the mounting rails
End cover plate requiredNo
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 100 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
Rating Data
- Pollution severity
- 3
Conductors For Clamping (Rated Connection)
- Blade size
- 0.6 x 3.5 mm
- Number of connections
- 4
Connection directionon side
Type of connectionScrew connection
