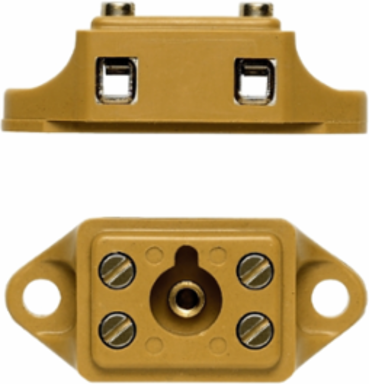

Weidmuller 0243820000 MK 5/2 O.DE Terminal Strip, 2.5 mm2 Rated Cross-Section, 24 A, 4 Connections
- MPN: 0243820000
- PPN: WDM-0243820000
CAD
$11.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Multipin terminal strip, Single- and multi-pole terminal strip, Rated cross-section: 2.5 mm², Screw connection, Direct mounting
Documentation & Downloads
Specifications
Approvals
| Approvals | CE, CSA, EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 18 mm |
|---|---|
| Height | 40 mm |
| Depth | 14.2 mm |
| Net weight | 10 g |
| Width (inches) | 0.709 inch |
|---|---|
| Height (inches) | 1.575 inch |
| Depth (inches) | 0.559 inch |
Csa Rating Data
| Certificate No. (CSA) | 12400-161-162-163 |
|---|---|
| Current size C (CSA) | 25 A |
| Voltage size B (CSA) | 300 V |
| Voltage size D (CSA) | 300 V |
| Wire cross section min. (CSA) | 20 AWG |
| Current size B (CSA) | 25 A |
|---|---|
| Current size D (CSA) | 10 A |
| Voltage size C (CSA) | 300 V |
| Wire cross section max. (CSA) | 14 AWG |
Additional Technical Data
| Explosion-tested version | No |
|---|---|
| Type of mounting | Direct mounting |
| Installation advice | Direct mounting |
|---|
Material Data
| Material | KrG |
|---|---|
| UL 94 flammability rating | 5VA |
| Colour | medium yellow |
|---|
Safety Note
| Safety notice | Safety Information |
|---|
Classifications
| ETIM 6.0 | EC001284 |
|---|---|
| eClass 9.0 | 27-14-11-06 |
| eClass 10.0 | 27-14-11-06 |
| ETIM 7.0 | EC001284 |
|---|---|
| eClass 9.1 | 27-14-11-06 |
| UNSPSC | 30-21-18-11 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
System Specifications
| Version | For the mounting rails |
|---|
| End cover plate required | No |
|---|
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 130 °C |
| Storage temperature, min. | 10 °C |
|---|---|
| Continuous operating temp., min. | -60 °C |
Rating Data
| Rated cross-section | 2.5 mm² |
|---|---|
| Rated current | 24 A |
| Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
| Rated impulse withstand voltage | 6 kV |
| Rated voltage | 500 V |
|---|---|
| Current at maximum wires | 24 A |
| Power loss in accordance with IEC 60947-7-x | 0.77 W |
| Pollution severity | 3 |
Conductors For Clamping (Rated Connection)
| Blade size | 0.6 x 3.5 mm |
|---|---|
| Clamping range, min. | 0.2 mm² |
| Connection cross-section, stranded, max. | 2.5 mm² |
| Connection direction | on side |
| Number of connections | 4 |
| Tightening torque, min. | 0.4 Nm |
| Type of connection | Screw connection |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 1.5 mm² |
| Wire connection cross-section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
| Clamping range, max. | 4 mm² |
|---|---|
| Clamping screw | M 2.5 |
| Connection cross-section, stranded, min. | 1.5 mm² |
| Gauge to IEC 60947-1 | A2 |
| Stripping length | 5 mm |
| Torque level with DMS electric screwdriver | 1 |
| Wire connection cross section, finely stranded, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 4 mm² |
