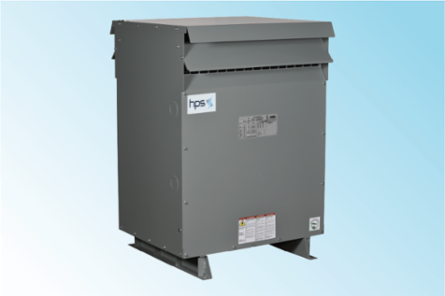

Hammond Power Solutions EG3L0100PEC Express G 100kVA 600→120/240 1PH SingleDual Type 1 vC Case CN5 (EG3L0100PEC)
- MPN: EG3L0100PEC
- UPC: 803423146344
- PPN: HPS-EG3L0100PEC
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
HPS Express-G energy-efficient commercial low-voltage three-phase distribution transformer. Rated 100 kVA, 600V primary to 240V secondary at 60 Hz. 1PH SingleDual connection.
Features
- DOE 2016 / NRCan 2019 energy-efficient compliant
- Energy-efficient commercial grade
Documentation & Downloads
Specifications
Electrical
| Primary Voltage | 600 |
|---|---|
| Frequency | 60 Hz |
| kVA Rating | 100 |
| Secondary Voltage | 240 |
|---|---|
| Phases | 1 |
Identification
| Generation | 3 |
|---|---|
| Phase Configuration | 1PH SingleDual |
| Secondary Voltage Code | E |
| Secondary Voltage (Decoded) | 120/240 |
| Variant Tail | C |
| Phase Code | L |
|---|---|
| Primary Voltage Code | P |
| Primary Voltage (Decoded) | 600 |
| Enclosure Type | Type 1 |
Physical
| Width | 29 in (737 mm) |
|---|---|
| Height | 39.1 in (993 mm) |
| Depth | 26.5 in (673 mm) |
|---|---|
| Weight | 650 lb (295 kg) |
Construction
| Case Style | CN5 |
|---|
| Wiring Diagram | SCD 1E |
|---|
