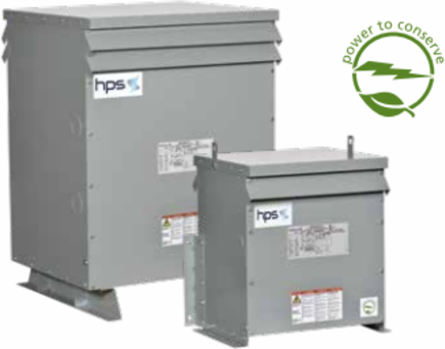

Hammond Power Solutions EG3A0075PB D16/NRC18 EXP-G3 3PH 75KVA 600D-208Y/120V AL 60HZ 150C 3R
- MPN: EG3A0075PB
- UPC: 803423146573
- PPN: HPS-EG3A0075PB
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
D16/NRC18 EXP-G3 3PH 75KVA 600D-208Y/120V AL 60HZ 150C 3R
Features
- Engineered to reliably step down a 600V Delta primary to a standard 208Y/120V secondary, this 75 kVA 3-phase transformer is built specifically for heavy-duty commercial loads. It seamlessly balances and powers essential 120V office receptacles, facility lighting circuits, and light-industrial machinery, eliminating the need for multiple smaller transformers and simplifying your electrical room layout.
- Operating at an ultra-high 98.6% efficiency rating, this Hammond Express G Series unit strictly adheres to the latest North American energy efficiency mandates. By drastically reducing internal heat loss and standby energy waste, it actively lowers your building's monthly utility bills and helps your commercial project qualify for rigorous green building certifications.
- Housed in a heavy-gauge, ventilated NEMA 3R steel enclosure, this floor-mounted transformer is fully certified for both indoor and exposed outdoor placement. This weather-resistant casing safely shields live internal components from rain, ice, and environmental debris, giving electrical contractors total installation flexibility without the added expense of building custom protective shelters.
- Featuring precision-wound aluminum coils paired with an industrial-grade 220°C insulation system, this unit is engineered for exceptional thermal endurance under continuous peak operations. This optimized heat dissipation prevents catastrophic insulation failure and expensive downtime, ensuring highly reliable, long-lasting performance while completely avoiding the premium upfront costs associated with copper alternatives.
Documentation & Downloads
Specifications
Additional
- Phase
- 3PH
- Voltage Primary
- 600D
- Frequency
- 60 Hz
- Enclosure Type
- Type 3R
kVA75 kVA
Voltage Secondary208Y/120V
MaterialAluminum
