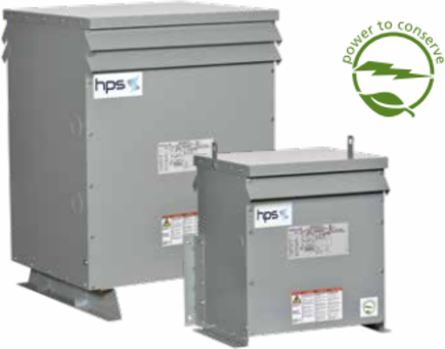

Hammond Power Solutions EG3A0225KB Express G 225kVA 480D→208Y/120 Delta-WyeN Type 1 Case CN6 (EG3A0225KB)
- MPN: EG3A0225KB
- UPC: 803423146443
- PPN: HPS-EG3A0225KB
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
HPS Express-G energy-efficient commercial low-voltage three-phase distribution transformer. Rated 225 kVA. Delta-WyeN connection.
Features
- DOE 2016 / NRCan 2019 energy-efficient compliant
- Energy-efficient commercial grade
Documentation & Downloads
Specifications
Identification
| Generation | 3 |
|---|---|
| Phase Configuration | Delta-WyeN |
| Secondary Voltage Code | B |
| Secondary Voltage (Decoded) | 208Y/120 |
| Phase Code | A |
|---|---|
| Primary Voltage Code | K |
| Primary Voltage (Decoded) | 480D |
| Enclosure Type | Type 1 |
Construction
| Case Style | CN6 |
|---|
| Wiring Diagram | SCD 3E |
|---|
Physical
| Width | 37.8 in (960 mm) |
|---|---|
| Height | 48.4 in (1229 mm) |
| Depth | 30 in (762 mm) |
|---|---|
| Weight | 1500 lb (680 kg) |
Electrical
| Secondary Voltage | 208Y/120 |
|---|---|
| kVA Rating | 225 |
| Frequency | 60 Hz |
|---|
