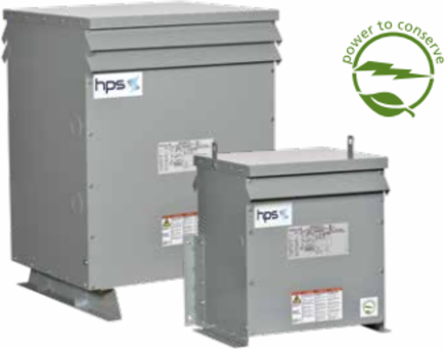

Hammond Power Solutions EG3A0075PBC Express G 75kVA 600D→208Y/120 Delta-WyeN Type 1 vC Case CN4 (EG3A0075PBC)
- MPN: EG3A0075PBC
- UPC: 803423146665
- PPN: HPS-EG3A0075PBC
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
HPS Express-G energy-efficient commercial low-voltage three-phase distribution transformer. Rated 75 kVA. Delta-WyeN connection.
Features
- DOE 2016 / NRCan 2019 energy-efficient compliant
- Energy-efficient commercial grade
Documentation & Downloads
Specifications
Additional
| kVA Rating | 75 kVA |
|---|---|
| Primary Voltage | 600D |
| Frequency | 60 Hz |
| Width | 26.3 in (668 mm) |
| Weight | 635 lb (288 kg) |
| Wiring Diagram | SCD 3E |
| Variant Tail | C |
| Secondary Voltage Code | B |
| Phase Code | A |
| Insulation System | 220 C (150 C rise) |
| Mounting | Floor mounting standard, wall mounting optional |
| Peak Inrush Current | 10 to 12 times RMS current |
| Phase Configuration | Delta-WyeN, Three Phase |
|---|---|
| Secondary Voltage | 208Y/120V |
| Height | 31.1 in (790 mm) |
| Depth | 23.3 in (592 mm) |
| Case Style | CN4 |
| Enclosure Type | Type 1, Heavy duty ventilated Type 3R |
| Primary Voltage Code | P |
| Generation | 3 |
| Energy Compliance | DOE 2016, NRCan 2019 |
| Impedance | 3.5% to 6.5% |
| Sound Level | Meets NEMA ST-20 standards |
