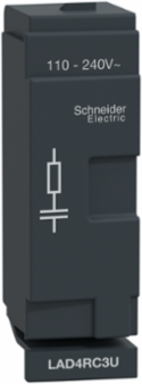

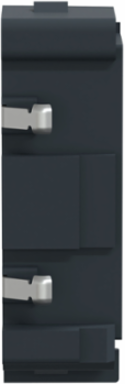

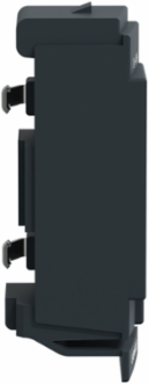

Schneider Electric LAD4RC3U TeSys Deca Safety Protective Cover for LC1D40A-D80A, IP2X, Green Premium

MPN: LAD4RC3U
PPN: SCH-LAD4RC3U
UNSPSC: 39121529

$60.60

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

TeSys Deca suppressor module, for LC1D40A-D80A, LC1DT60A-DT80A contactors. To be used with 380-415V AC control circuit voltage, it provides a RC protection limiting the transient voltage to 3 Uc max. Clip-on front mounting, overall size of the contactor is unchanged.

Features

New modern look & feel of all machines
Designed to meet the requirements of industrial and HVAC applications
Easier to install and operate with multi-standard screws
With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
Digital customer experience for technical documents
Maintenance guide via EcoStruxureTM Facility Expect

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States

Weight	20 g

Physical Attributes

Color	dark grey

Complementary Attributes

Maximum Peak Voltage	3 Uc

Uc Control Circuit Voltage	110...240 V AC

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Range	TeSys, TeSys Deca
Carbon Footprint Of The Distribution Phase A4	0.0023693311582381727, 0 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.2 kg CO2 eq., 0.18024469820554648
Local Publishable Date	2026-07-07
Serviceability	No
Field Service Division	PPIBS
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1926
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Compatibility Code	LAD4
Mounting Location	front
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	TeSys Deca
Software Version	v5.9.4
Sustainable Packaging	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Source	extrapolated product
Customs Code	8536308000
Functional Unit Description	It provides a flywheel diode protection ensuring no transient overvoltage. Clip-on side mounting, overall size of the contactor is unchanged.
Functional Unit Unit	unit
Recyclability Potential In %	20

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Certificate Agency	UL, CSA
Carbon Footprint Of The End Of Life Phase C1 To C4	0.1 kg CO2 eq., 0.05996247960848286
Local Data Status	Publishable
Return Indicator	Y
Traceability	No
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Device Short Name	LAD4
Mounting Mode	by clips
Product Or Component Type	suppressor module
Returnability	Yes
Suppressor Technology	RC circuit
Total Lifecycle Carbon Footprint	0.2 kg CO2 eq.
Database Version	2022-01
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Ambient Air Temperature For Storage	-40-80 °C, -40-80 °C
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.2425765089722675
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	3P LC1D40A...D80A4P LC1DT60A...DT80A
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2025-08-05
Psr Version	PSR-0005-ed2-2016 03 29

Ambient Air Temperature For Operation	-25-55 °C, -25-55 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP1112053EN
Ip Degree Of Protection	IP2XIEC 60529
Packaging Without Single Use Plastic	No
Reach Free Of Svhc	Yes
Pep Code	ENVPEP1112053EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
