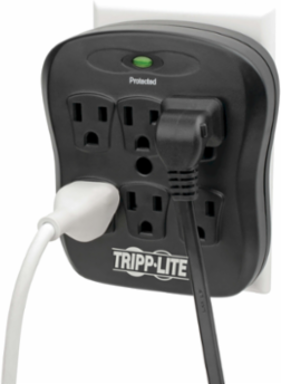

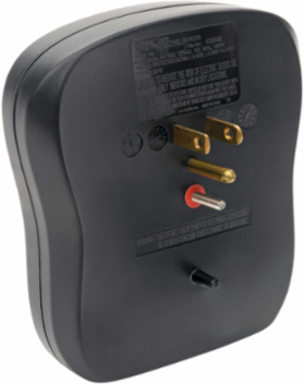

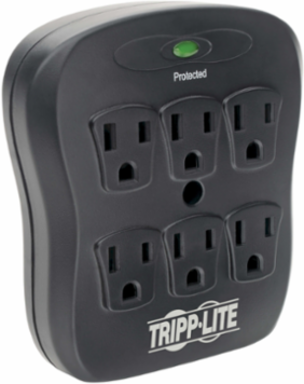

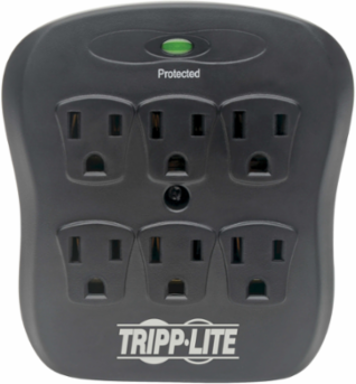

Tripp Lite SK6-0B 6-Outlet Surge Protector, Direct Plug-In, 540 Joules, Diagnostic LED, Black Casing
Tripp Lite SK6-0B 6-Outlet Surge Protector, Direct Plug-In, 540 Joules, Diagnostic LED, Black Casing
- MPN: SK6-0B
- UPC: 037332146397
- PPN: TRP-SK6-0B
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$23.84/ EA
Description
6-Outlet Surge Protector, Direct Plug-In, 540 Joules, Diagnostic LED, Black Casing
Features
- 6 outlets/direct plug-in
- 540 joule rating
- This product is covered by a Lifetime Limited Warranty ( coverage details )
- $10,000 Ultimate Lifetime Insurance
Specifications
Surge / Noise Suppression
- AC Suppression Joule Rating
- 540
- Protection Modes
- Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression
- AC Suppression Surge Current Rating
- 27,000
- Immunity
- Conforms to IEE 587/ANSI C62.41
AC Suppression Response Time< 1ns
Clamping Voltage (RMS)150
UL1449 Let Through Rating400, 500, 500
Automatic Shut-OffYes
Certifications
- UL1449 3rd Edition (AC Suppression)
- UL 1449 3rd Edition
ApprovalsExceeds IEEE 587 category A&B specifications
Dataline Surge Suppression
- Telephone/DSL Protection
- No
- Network (Ethernet) Protection
- No
Cable (Coax) ProtectionNo
Physical
- Anti-Microbial Protected
- No
- Housing Color
- Black
- Material of Construction
- Plastic
- Receptacle Color
- Black
- Shipping Weight (lbs.)
- 0.50
- Unit Weight (lbs.)
- .406
ColorBlack
Integrated Keyhole Mounting SlotsNo
Outlets Measurement (Center to Center)Distance between horizontal outlets = 25.2mm; Distance between vertical outlets = 39mm
Shipping Dimensions (hwd / in.)4.70 x 3.00 x 4.00
Unit Dimensions (hwd / in.)4.8 x 4.6 x 1.2
User Interface, Alerts & Controls
- Diagnostic LED(s)
- Yes
Input
- Nominal Input Voltage(s) Supported
- 120V AC
- Input Cord Length Details
- Direct Plug-In
- Maximum Surge Amps
- 36000
- Input Cord Length (ft.)
- 0
- Integrated Cord Clip
- No
Recommended Electrical Service120V
Voltage Compatibility (VAC)120
Input Plug TypeNEMA 5-15P
Right-Angle PlugNo
Output
- Frequency Compatibility
- 50 / 60 Hz
- Output Receptacles
- (6) 5-15R
- Transformer Accommodation
- (2) Yes
Output (Watts)1800
Circuit Breaker (amps)15
Right-Angle OutletsNo
Overview
- UPC Code
- 037332146397
Special Features
- Rotatable Outlets
- No
Warranty
- Product Warranty Period (Worldwide)
- Lifetime limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)$10,000 Ultimate Lifetime Insurance
