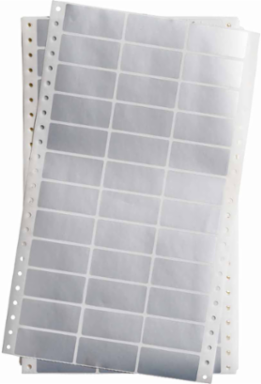

Brady DAT-77-969-5 DATAB Series PermaSleeve Metallized Polyester Wire Marking Sleeves, 0.9" H x 2" W, Pack of 5000 Labels
- MPN: DAT-77-969-5
- UPC: 662820272779
- PPN: BRD-DAT-77-969-5
- UNSPSC: 55121612
CAD
$1759.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The B-969A material has good smudge resistance, solvent resistance and high temperature performance.
Features
- Ideal for use as an identification label or rating plate
- Has good smudge resistance, solvent resistance and high temperature performance
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Electrical Labeling; General Identification
- Brand Name
- Brady®
- Color
- Silver
- Corner Type
- Rounded Corners
- Finish
- Matte
- Label/Media Format
- Pack
- Print Technology
- Dot Matrix
- Printer Compatibility
- Dot Matrix
- Ribbon Series
- R2000; R5000
- Suggested Ribbon Series
- R5000
- Total Quantity
- 5000
- Adhesive Type
- Permanent Acrylic
- Brady Material Number
- B-969A
- Material
- Metallized Polyester
- Resistance Properties
- Abrasion-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant
- Dimensions
- 0.9 in H x 2 in W
- Dimensions 2
- 0.9 in H x 2 in W
- Height (mm/cm/m)
- 22.86 mm
- Label/Tape Size (in/ft/yd)
- 0.9 in H x 2 in W
- Maximum Service Temperature °F
- 293 °F
- Minimum Application Temperature °F
- 50 °F
- Minimum Service Temperature °F
- -94 °F
- Printable Area Height (mm/cm/m)
- 22.86 mm
- Sign Size-General
- 0.9 in x 2 in
- Thickness (in/ft/yd)
- 0.005 in
- Vertical Repeat
- 1 in
- Web Width (mm/cm/m)
- 182.88 mm
- Width (mm/cm/m)
- 50.8 mm
Board ApplicationThrough Hole - Top
Bulk PartNot a Bulk Part
Compatible Surface TypesHigh Surface Energy
Enables Industry ComplianceASTM D 1000; ASTM D 2979; ASTM G 155; CSA Approved; UL Recognized
For Use with PrinterDot Matrix Printers
Primary Noun, Basic FunctionLabel
Printer and Label ApplicationsGeneral Identification; Inspection Repair; Rating & Name Plates
Quantity per Row3
ShapeRectangle
Total Qty per Pack5000 Label(s) / Pack
Trade NameDATAB®
After ProcessYes, this material will work with this application
Label PropertiesHeat Resistant Labels; Metallic Labels; Permanent Adhesive Labels
Material PropertiesMetallized
SAP B-NumberB-969A
Dimensions (Metric)50.80 mm W x 22.86 mm H
Height (in/ft/yd)0.9 in
Horizontal Repeat (mm)53.34 mm
Maximum Service Temperature °C145 °C
Minimum Application Temperature °C10 °C
Minimum Service Temperature °C-70 °C
Printable Area Dimensions (Metric)22.86 mm H x 50.80 mm W
Printable Area Width (mm/cm/m)50.80 mm
Size - Width (mm)50.80 mm
Thickness (mm/cm/m)0.122 mm
Vertical Repeat (mm)25.40 mm
Width (in/ft/yd)2 in
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
