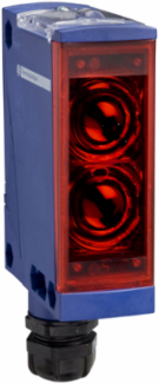

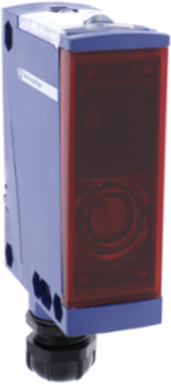

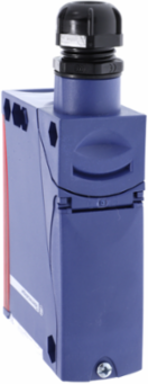

Telemecanique Sensors XUX2APANT16R Photoelectric sensors XU, XUX, receiver, Sn 40 m, 12...24 VDC, terminals
- MPN: XUX2APANT16R
- PPN: TES-XUX2APANT16R
- UNSPSC: 39121528
CAD
$207.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This compact design single mode (thru-beam system) photo-electric receiver has a PBT case. It has a supply voltage of 12V to 24V DC. This mono-mode rectangular photoelectric receiver has a painted aluminium and polyamide construction, is mountable directly on a surface or bracket, thanks to its 4 fixing points. It has VALOX® PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 2 LED display allows to identify status of the sensor and beam instability, to facilitate troubleshooting. IP65 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+55°C). It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.
Documentation & Downloads
Specifications
Key Specifications
- Electrical Connection
- screw-clamp terminals, 1 x 1.5 mm² or 1 x 0.75 mm² with adaptor
- Discrete Output Function
- 1 NO
- Range Of Product
- Telemecanique Photoelectric sensors XU
- Sensor Name
- XUX
- Wiring Technique
- 3-wire
- Detection System
- thru beam
- Supply Circuit Type
- DC
- [Sn] Nominal Sensing Distance
- 40-40 m thru beam need a transmitter XUX0AKSAT16T
Discrete Output TypePNP
Type Of Output Signaldiscrete
Emissioninfrared thru beam
Materialplastic
Series Namegeneral purpose single mode
Sensor Designcompact 92 x 71
Electronic Sensor Typephoto-electric sensor receiver
Complementary
- Current Consumption
- <= 35 mA no-load
- Switching Frequency
- <= 250 Hz
- Status Led
- 1 LED yellow)output state || 1 LED green)supply
- Lens Material
- PMMA
- Maximum Voltage Drop
- <1.5 V closed state)
- Maximum Delay Recovery
- 2 ms
- Maximum Sensing Distance
- 60 m thru beam
- Switching Capacity In Ma
- <= 100 mA overload and short-circuit protection)
- Width
- 31 mm
- Depth
- 77 mm
- [Us] Rated Supply Voltage
- 12...24 V DC reverse polarity protection
Height92 mm
Maximum Delay Response2 ms
Setting-Upsensitivity adjustment
Cable Entry1 entry for M16 x 1.5 cable gland 7-10 mm
Net Weight0.2 kg
Maximum Delay First Up15 ms
Supply Voltage Limits10-36 V DC
Enclosure MaterialPBT
Output Typesolid state
Add On Outputwithout
Environment
- Product Certifications
- CSA || UL || CE
- Vibration Resistance
- 7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
Ambient Air Temperature For Operation-25-55 °C
Shock Resistance30 gn 11 ms) IEC 60068-2-27
Ip Degree Of ProtectionIP65 double insulation IEC 60529 || IP67 double insulation IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111233EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI111209EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
