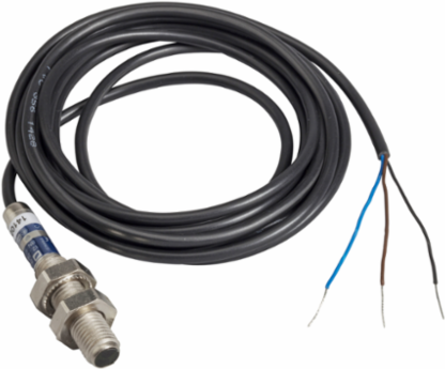

Telemecanique Sensors XUAH0214 Photoelectric sensors XU, XUA, thru beam, Sn 2 m, 12...24 VDC, cable 2 m
- MPN: XUAH0214
- PPN: TES-XUAH0214
- UNSPSC: 39121528
CAD
$220.12
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This photo-electric sensor is part of the XU Application range. It is designed for assembly applications. It is a metal case, cylindrical, threaded M8 x 1 receiver, pre-cabled, with DC supply and solid-state output. This sensor features a pre-cable connection, 2m long, diameter 3.5mm. 2m nominal sensing distance. 3-wire, PNP, NO function. Thru-beam system with infrared transmission.
Documentation & Downloads
Specifications
Key Specifications
| Electrical Connection | cable |
|---|---|
| Discrete Output Function | 1 NO |
| Range Of Product | Telemecanique Photoelectric sensors XU |
| Emission | infrared thru beam |
| Sensor Name | XUA |
| Wiring Technique | 3-wire |
| Detection System | thru beam |
| Supply Circuit Type | DC |
| [Sn] Nominal Sensing Distance | 2-2 m thru beam need a transmitter XUAH0203 |
| Discrete Output Type | PNP |
|---|---|
| Type Of Output Signal | discrete |
| Cable Length | 2 m |
| Line Of Sight Type | axial |
| Material | metal |
| Series Name | Application assembly |
| Sensor Design | cylindrical M8 |
| Electronic Sensor Type | photo-electric sensor |
Complementary
| Current Consumption | <= 10 mA no-load |
|---|---|
| Maximum Delay Response | 0.25 ms |
| Status Led | 1 LED yellow)output state |
| Lens Material | PMMA |
| Length | 47 mm |
| Cable Outer Diameter | 3.5 mm |
| Maximum Delay First Up | 20 ms |
| Supply Voltage Limits | 10-30 V DC |
| Wire Insulation Material | PvR |
| Cable Composition | 3 x 0.14 mm² |
| Add On Output | without |
| Switching Frequency | <= 2000 Hz |
|---|---|
| Diameter | 8 mm |
| Setting-Up | without sensitivity adjustment |
| Maximum Voltage Drop | <1 V closed state) |
| Net Weight | 0.015 kg |
| Maximum Delay Recovery | 0.25 ms |
| Maximum Sensing Distance | 4 m |
| Switching Capacity In Ma | <= 100 mA overload and short-circuit protection) |
| Enclosure Material | Nickel Plated Brass |
| Output Type | solid state |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
Environment
| Product Certifications | CE || cULus |
|---|---|
| Ambient Air Temperature For Operation | -25-55 °C |
| Ambient Air Temperature For Storage | -30-70 °C |
| Vibration Resistance | 7 gn +/- 1 mm 10-55 Hz) IEC 60068-2-6 |
|---|---|
| Shock Resistance | 30 gn 11 ms) IEC 60068-2-27 |
| Ip Degree Of Protection | IP65 IEC 60529 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
