Ocal FD1-G FS/FD Device Boxes & Covers-PVC Coated
- MPN: FD1-G
- UPC: 070450837655
- PPN: T-B-FD1-G
CAD
$139.27
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

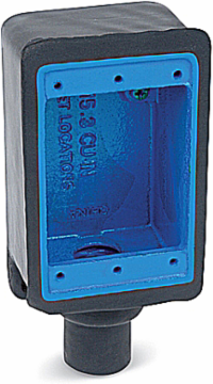

PVC Double-Coated Dead End Device Box, FD Series, Single Gang, Deep Style, Pipe Size 1/2 Inch/16 Metric, Iron Alloy, Dark Gray
Features
- Cast class 30 gray iron alloy boxes
- Coated with a nominal .002 inch (2 mil) blue urethane on both the interior and exterior before PVC coating is applied
- Nominal .040 inch (40 mil) PVC coating bonded to exterior
- Pressure sealing sleeves protect connections with conduit
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121315 Cast device box
- Brand Name
- Ocal
- Special Features
- Pressure-Sealing Sleeves Protect Connections with Conduit
- Standard
- UL E2527, CSA 001472
- Size
- 1/2 Inch/16mm
IGCC4447 Cast device box
TypeFS/FD Device Boxes & Covers-PVC Coated
ApplicationTo Accommodate Wiring Devices, Act as Pull Boxes for Conductors, Provide Openings to Make Splices and Taps
MaterialIron
ColorDark Gray
European Specifications (ETIM)
- ETIM
- EC002600 Box/housing for surface mounting on the wall/ceiling
- For tubediameter
- 16 mm
- Type of housing feed-through
- Thread
- Surface protection
- Other
ShapeRectangular
Number of inlets1
MaterialOther
ColourGrey
Packaging
- Outer Quantity
- 10
- Weight Uom
- 3.4 lbs. Each
Outer Dimensions (inches)14x8x8
