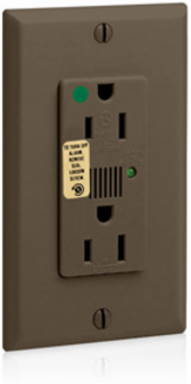

Leviton 8280 Decora Plus 15 Amp 125 Volt Surge Protective Duplex Receptacle Outlet, Heavy-Duty Hospital Grade
- MPN: 8280
- UPC: 078477009031
- PPN: LEV-8280
CAD
$138.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Decora Plus Surge Protective Duplex Receptacle Outlet, Heavy-Duty Hospital Grade, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire - Brown
Features
- Leviton’s Surge Protection Devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton Surge Protection Devices are compliant with UL 1449 Standards. Leviton’s outstanding Surge Protection Devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NEMA | WD-6 |
| UL498HG | File E13399 |
| Agency Certifications | UL 498, UL 1449 3rd Edition Listed and CSA C22.2 Certified Type 3 |
|---|---|
| NOM | 057 |
Performance Data
| Diagnostics | Indicator Light & Audible Alarm |
|---|---|
| MCOV | 150V rms |
| Noise Rejection | -30dB at 500kHz-30MHz |
| Short Circuit Current Rating | 5kA |
| Joules Rating | 720 |
|---|---|
| Maximum Surge Current, Per Mode (Per Phase) | 27kA (L-N:18kA, L-G:9kA) |
| Nominal Discharge Current Rating | 3kA |
| VPR | L-N: 600V, L-G: 700V, N-G: 600V |
Material Specifications
| Body Material | Nylon |
|---|---|
| Face Material | Nylon |
| Line Contacts | Brass Triple-Wipe |
| Terminal Screws | Brass-Plated Steel |
| Clamp Nuts | Zinc-Plated Steel |
|---|---|
| Grounding Screw | Brass-Plated Steel |
| Shutter Mechanism | Delrin® Acetal |
| Yoke | Zinc-Plated Steel |
Mechanical Specifications
| Product ID | Ratings are permanently marked on device |
|---|---|
| Terminal Accom. | 14-10 AWG |
| Termination | Back or Side Wire |
| Screw Terminal Torque | 14-18 in-lbs |
|---|---|
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
Product Features
| Brand | Decora Plus |
|---|---|
| Device Type | Duplex Receptacle Outlet |
| Grade | Heavy-Duty Hospital Grade |
| Color | Brown |
|---|---|
| Function | Surge Protective |
Warranty
| Warranty | 5-Year Limited |
|---|
Environmental Specifications
| Flammability | Rated V-2 per UL 94 |
|---|
| Operating Temperature | -40°C to 60°C |
|---|
Electrical Specifications
| Amperage | 15 A |
|---|---|
| Dielectric Voltage | Withstands 2000V per UL498 |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Wire | 3 |
| Current Limiting | Full Rated Current |
|---|---|
| Pole | 2 |
| Voltage | 125 VAC |
