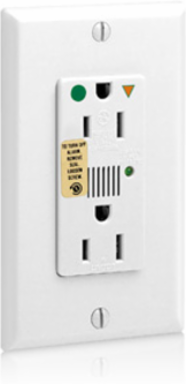

Leviton 8280-IGW Decora Plus Surge Protective Isolated Ground Receptacle 15 Amp 125 Volt
- MPN: 8280-IGW
- UPC: 078477008973
- PPN: LEV-8280-IGW
CAD
$164.50
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Decora Plus Surge Protective Isolated Ground Duplex Receptacle Outlet, Heavy-Duty Hospital Grade, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire - White
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NEMA | WD-6 |
| UL498HG | File E13399 |
| CSA C22.2 No. 42 | File 152105 |
|---|---|
| NOM | 057 |
Performance Data
| Diagnostics | Indicator Light & Audible Alarm |
|---|---|
| MCOV | 150V rms |
| Noise Rejection | -30dB at 500kHz-30MHz |
| UL1449 Impulse 6kV/500A L-N | 400V |
| Joules Rating | 720 |
|---|---|
| Max Surge Current L-N | 24kA |
| Short Circuit Current Rating | 5kA |
| VPR | L-N:600V, L-G:700V, N-G:600V |
Material Specifications
| Body Material | Nylon |
|---|---|
| Face Material | Nylon |
| Line Contacts | Brass Triple-Wipe |
| Yoke | Zinc-Plated Steel |
| Clamp Nuts | Zinc-Plated Steel |
|---|---|
| Grounding Screw | Brass 8-32 |
| Terminal Screws | Brass 10-32 |
Mechanical Specifications
| Product ID | Ratings are permanently marked on device |
|---|---|
| Terminal ID | Brass-Hot, Green-Ground, White-Neutral |
| Terminal Accom. | 14-10 AWG |
|---|---|
| Termination | Back or Side Wire |
Product Features
| Brand | Decora Plus |
|---|---|
| Device Type | Duplex Receptacle Outlet |
| Function | Surge Protective Isolated Ground |
| NEMA | 5-15R |
| Strap Material | Steel |
| Color | White |
|---|---|
| Feature | Surge |
| Grade | Heavy-Duty Hospital Grade |
| Standards and Certifications | UL/CSA |
| Warranty | 5-Year Limited |
Environmental Specifications
| Flammability | Rated V-2 per UL 94 |
|---|
| Operating Temperature | -40°C to 60°C |
|---|
Electrical Specifications
| Amperage | 15 A |
|---|---|
| Dielectric Voltage | Withstands 2000V per UL498 |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Wire | 3 |
| Current Limiting | Full Rated Current |
|---|---|
| Pole | 2 |
| Voltage | 125 VAC |
AC Horsepower Ratings
| At Rated Voltage | 1/2 HP |
|---|
