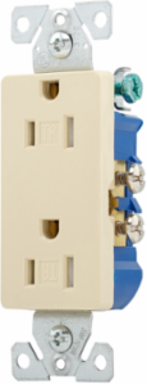

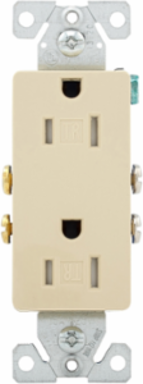

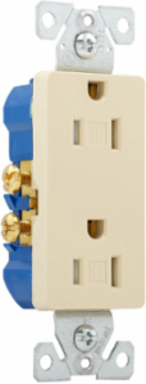

Cooper Wiring Devices TR1107V Decorator Duplex Receptacle, Tamper-Resistant, 15A, 125V, NEMA 5-15R, Ivory (TR1107V)
- MPN: TR1107V
- UPC: 032664666438
- PPN: COW-TR1107V
CAD
$1.51
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Eaton residential grade decorator duplex receptacle, #14-10 AWG, 15A, Commercial, Residential, Flush, 125V, Side and push, Ivory, Brass, Impact-resistant thermoplastic face, PVC body, 5-15R, Duplex, Screw, Thermoplastic, Core pack, Tamper-resistant
Documentation & Downloads
Specifications
Key Specifications
- Amperage Rating
- 15A
- NEMA Configuration
- 5-15R
- Allowable Wire Size
- Push-In Terminals: #14 AWG copper (CU) Only; Side Wiring: #10-14 Copper or Copper Clad Aluminum
- Number of Wires
- 3
- Length
- 1.3 in
- Width
- 0.69 in
- Face/Body Material
- Impact-resistant thermoplastic face, PVC body
- Color
- Ivory
- Design Type
- Straight blade
- Connection Type
- Screw
- Application
- Commercial/residential
Voltage Rating125V
Wiring MethodSide and push
Number of PolesTwo-pole
Torque Rating14 lbf-inch
Height3.81 in
Mounting MethodFlush
Contact MaterialBrass
Style TypeDecorator
Receptacle TypeDuplex
Device GradeStandard grade
