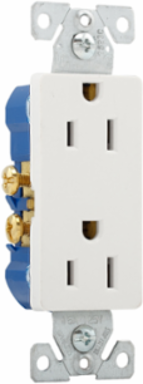

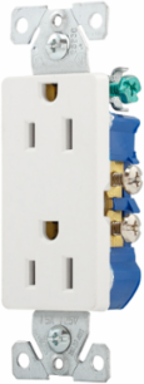

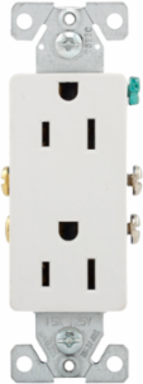

Cooper Wiring Devices 1107W Duplex Receptacle, Decorator, 15A, 125V, NEMA 5-15R, White, Residential Grade (1107W)
- MPN: 1107W
- UPC: 032664512483
- PPN: COW-1107W
CAD
$1.10
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Eaton residential grade duplex receptacle, #14-10 AWG, 15A, Decorator, Commercial, Residential, Flush, 125V, Side and push, White, Brass, Impact-resistant thermoplastic, 5-15R, Duplex, Screw, Thermoplastic, Core pack
Documentation & Downloads
Specifications
Key Specifications
| Amperage Rating | 15A |
|---|---|
| NEMA Configuration | 5-15R |
| Allowable Wire Size | Push-In Terminals: #14 AWG copper only; Side Wiring: #10-14 Copper or Copper Clad Aluminum |
| Number of Poles | Two-pole |
| Connection Type | Screw |
| Material | Impact-resistant thermoplastic |
| Color | White |
| Receptacle Type | Duplex |
| Application | Commercial/residential |
| Voltage Rating | 125V |
|---|---|
| Torque Rating | 14 lbf-inch |
| Number of Wires | 3 |
| Mounting Method | Flush |
| Wiring Method | Side and push |
| Contact Material | Brass |
| Style Type | Decorator |
| Design Type | Straight blade |
| Product Type | Residential grade |
