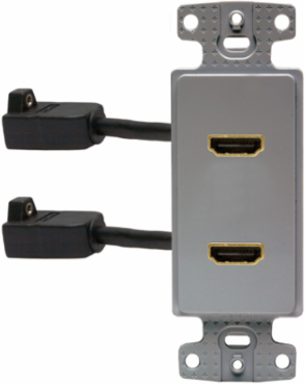

Bryant NS802GY HDMI Decorator Plate Frame with 2 HDMI Ports, 4.75 Inch, Gray
Bryant NS802GY HDMI Decorator Plate Frame with 2 HDMI Ports, 4.75 Inch, Gray
- MPN: NS802GY
- UPC: 883778503894
- PPN: HBL-NS802GY
- UNSPSC: 39121444
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$71.18/ EA
Description
Decorator Plate Frame with 2) HDMI Female to Female, Gray
Features
- 4 Inch Flexible Tail Supports Confined Space Applications
- Aesthetically Pleasing, Flush Connector Appearance
- Rear Connector Incorporates Threaded Insert to Secure
- Connection with Hubbell HDMI Cords
- Connector Sized to Fit in 1 Inch Conduit
- Standard Product
Specifications
Specifications
- Country of Origin
- TW
- Each - Width
- 4.750 in
- Standards - RoHS Compliance Status
- CM
- Color
- Gray
- Special Features
- Standard Product
- Temperature Rating
- Per TIA
- Connectivity
- Plug-N-Play
- Description - Invoice
- PLATE, FRAME,DECORATOR,W/2HDMI,FF,GY
- Harmonization Code
- 8544429090
- MSDS Flag
- No
- Material - Mounting Hardware
- Snap-On- Snap-Fit
- BOX SIZE
- 3.800x10.900x5.500 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 883778503894
- Case - Total Units
- 100 EA
- Each - Pack Description
- Each
Width4.750 in
Industry Standard(s)UL Listed
ApplicationHDMI Decorator Frame Loaded
Contact Resistance100 Ohm
StandardUL Listed
Withstand Voltage1000V RMS, 1414V DC
Number Of Ports2
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeHPWALL2
Base Unit of MeasureEA
Carton - Gross Weight per Pack6.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight60.000 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
