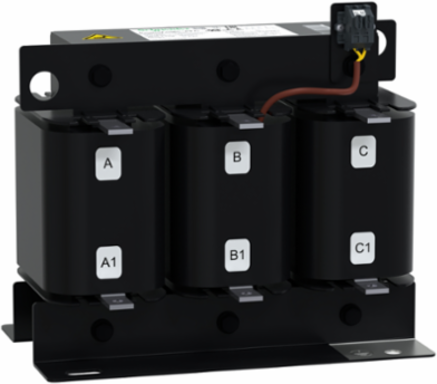

Schneider Electric LVR05250B48T Anti Harmonic PowerLogic PFC detuned reactor, 25kvar 252Hz (4.2) 5.7% 60Hz 480V
- MPN: LVR05250B48T
- PPN: SCH-LVR05250B48T
CAD
$2286.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The VarPlus detuned reactor are designed to protect the capacitor by preventing the amplification of the harmonics present in the system. Capacitors and Reactors are configured in Series resonant circuit. Tuned so that the series resonant frequency is below the lowest harmonic frequency present in the system. This reactor is rated for 25 kVar output power with 4.2/252 Hz tuning order at 480V AC at 60 Hz. Relative impedance, 5.7 %. This component meet the standards IEC 60068. This component require a forced convection, a fan need to be added. The case dimensions are 220mm in height, 240mm in width and 160mm in depth. For a product weight of 17.5 kg.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, France, United States
Depth160 mm
Complementary Attributes
- Maximum Current Irms
- 36.7 A
Network Rated Voltage480 V AC 60 Hz
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Inductance Tolerance
- - 5 % to 5 % per phase, - 5 % to 5 % per phase, - 5 % to 5 % per phase, - 5 % to 5 % per phase
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 38 kg CO2 eq., 37.90635135607772
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 115 kg CO2 eq., 114.63088107437828
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Serviceability
- Yes
- Field Service Division
- DPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 3
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Dielectric Test Voltage
- 4 kV 60 Hz 1 minute
- Electrical Insulation Class
- class H
- Fixing Center
- 200 x 125 mm
- Power Losses
- 200 W
- Product Or Component Type
- detuned reactor
- Reactive Power Rating
- 25 kvar 480 V AC 60 Hz
- Software Version
- v6.2.4
- Total Lifecycle Carbon Footprint
- 2 437 kg CO2 eq.
- Value Of Inductance
- 1.421 mH
- Harmonic Current Spectrum
- 2.9 % x I367.8 % x I518.6 % x I76.2 % x I11
- Fundamental Current Rating
- 30.1 A
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The use of detuned reactors thus prevents harmonic resonance problems, avoids the risk of overloading the capacitors and helps reduce voltage harmonic distortion in the network.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Czech Republic, CZ
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Recyclability Potential In %
- 1
- Width Nominal
- 240 mm
- [Imp] Maximum Permanent Current
- 1.3 x I1
- [Ui] Rated Insulation Voltage
- 1.1 kV
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8543709860
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]15.344450827082886, 15 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]2.4196747282507647, 2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]2 267 kg CO2 eq., 2266.6800937787325
Local Publishable Date2025-11-06
Stocking FlagY
Device TypeSurge Protection and Power Conditioning - Filters & Harmonic Conditioners
TraceabilityYes
Service Catalog ItemSpare part
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2402
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier3
Function OptionStandard
Device Short NameDR
Dynamic Withstand Current2.2 x Isc
Energy Efficiency OptimizedFalse
Network Frequency60 Hz
Product AvailabilityStock - Normally stocked in distribution facility
RangePowerLogic
ReturnabilityYes
Sustainable PackagingNo
Type Of Coolingforced convection
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Tuning Order4.2 - 252 Hz - 5.7 % - 60 Hz
Pep CodeENVPEP1212015EN
Pep Verification Date2025-01-20
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
Height Nominal220 mm
Certificate AgencyIEC 60068
[Ith] Conventional Free Air Thermal Current2 A 250 V AC 50 Hz
Connections - Terminalspad terminal
Package Weight(Lbs)16.560 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Average Ambient Air Temperature For Operation
- 50 °C <= 3280.84 ft (1000 m) average over 24 hours)40 °C <= 3280.84 ft (1000 m) average over 1 year)45 °C > 3280.84...6561.68 ft (> 1000...2000 m) average over 24 hours), 35 °C > 3280.84...6561.68 ft (> 1000...2000 m) average over 1 year)
- Operating Altitude
- <= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
- Reach Free Shvc
- Yes
- Carbon Footprint
- 2436.9814517645223
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1212015EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Operation0-55 °C <= 3280.84 ft (1000 m), 0-50 °C > 3280.84...6561.68 ft (> 1000...2000 m)
Climatic Withstandrelative humidity 20...80 %, salt mist 400 V/50 Hz) 250 hours
Take BackNo
Recycled Metal Content At Cr Level0 %
Environmental DisclosureENVPEP1212015EN
Ip Degree Of ProtectionIP00
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-01-20
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- detuned reactor
ETIM
- ETIM 8
- EC002565
ETIM 9EC002565
