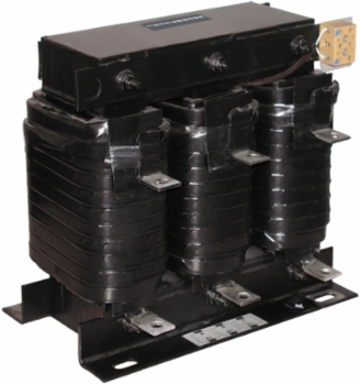

Schneider Electric LVR05250B60T Anti Harmonic PowerLogic PFC detuned reactor, 25kvar 252Hz (4.2) 5.7% 60Hz 600V
- MPN: LVR05250B60T
- PPN: SCH-LVR05250B60T
CAD
$2437.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Anti Harmonic PowerLogic PFC detuned reactor, 25kvar 252Hz (4.2) 5.7% 60Hz 600V
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Complementary Attributes
- Network Rated Voltage
- 600 V AC 60 Hz
Important Information Attributes
- Inductance Tolerance
- - 5 % to 5 % per phase, - 5 % to 5 % per phase, - 5 % to 5 % per phase, - 5 % to 5 % per phase
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 39 kg CO2 eq., 39.021244043021184
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 118 kg CO2 eq., 118.00237757656586
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Serviceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Dielectric Test Voltage
- 4 kV 60 Hz 1 minute
- Product Availability
- Stock - Normally stocked in distribution facility
- Range
- PowerLogic
- Returnability
- Yes
- Sustainable Packaging
- No
- Type Of Cooling
- forced convection
- Tuning Order
- 4.2 - 252 Hz - 5.7 % - 60 Hz
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The use of detuned reactors thus prevents harmonic resonance problems, avoids the risk of overloading the capacitors and helps reduce voltage harmonic distortion in the network.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Czech Republic, CZ
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Recyclability Potential In %
- 1
- [Imp] Maximum Permanent Current
- 1.3 x I1
- Connections - Terminals
- pad terminal
- Package Weight(Lbs)
- 16.49 kg
- Warranty (In Months)
- 18
Carbon Footprint Of The Distribution Phase [A4]15.79575820435003, 16 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]2.4908416320228457, 2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]1 943 kg CO2 eq., 1942.8686518103423
Local Publishable Date2025-11-06
Stocking FlagY
Device TypeSurge Protection and Power Conditioning - Filters & Harmonic Conditioners
Service Catalog ItemSpare part
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2402
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Device Short NameDR
Network Frequency60 Hz
Product Or Component Typedetuned reactor
Reactive Power Rating25 kvar 600 V AC 60 Hz
Software Versionv6.2.4
Total Lifecycle Carbon Footprint2 118 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP1212015EN
Pep Verification Date2025-01-20
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
Certificate AgencyIEC 60068
[Ui] Rated Insulation Voltage1.1 kV
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8543709860
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Average Ambient Air Temperature For Operation
- 50 °C <= 3280.84 ft (1000 m) average over 24 hours)40 °C <= 3280.84 ft (1000 m) average over 1 year)45 °C > 3280.84...6561.68 ft (> 1000...2000 m) average over 24 hours), 35 °C > 3280.84...6561.68 ft (> 1000...2000 m) average over 1 year)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Environmental Disclosure
- ENVPEP1212015EN
- Ip Degree Of Protection
- IP00
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-01-20
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Operation0-55 °C <= 3280.84 ft (1000 m), 0-50 °C > 3280.84...6561.68 ft (> 1000...2000 m)
Operating Altitude<= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
Reach Free ShvcYes
Carbon Footprint2118.1788732663026
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP1212015EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- detuned reactor
