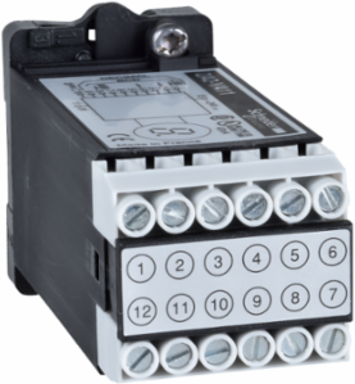

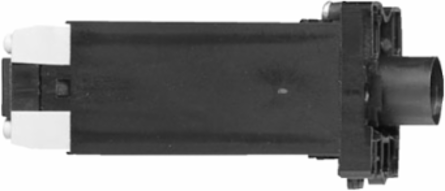

Schneider Electric ZA2VA12 Digital display body, Harmony XB5, 22mm, BCD +latch, 24V DC

Digital display body, Harmony XB5, 22mm, BCD +latch, 24V DC
  • MPN: ZA2VA12
  • PPN: SCH-ZA2VA12

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$457.86/ EA

Description

This digital display body is a separate component of the range diameter 22mm, Harmony XB5. It features a digital display body with BCD + latch decoding and screw connection type. Its supply voltage is 24V DC. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It makes it ideal for operation in harsh environments.

Specifications

Environment

Product Certifications
UL || CSA
Ambient Air Temperature For Storage
-40-85 °C
Shock Resistance
180 gn 11 ms IEC 60068-2-27
Ip Degree Of Protection
IP65 IEC 60529 || IP65 NF C 20-010
Ambient Air Temperature For Operation-25-70 °C
Electrical Shock Protection Classclass II IEC 60536 || class II NF C 20-030
Vibration Resistance10 gn 10-500 Hz)IEC 60068-2-6

Contractual warranty

Warranty
18 months

Offer Sustainability

China Rohs Regulation
X
Rohs Exemption Information
Yes
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Circularity ProfileN/A
Mercury FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold

Complementary

Logic Input
positive
Electronic Decoding
BCD + latch
Protection Type
reverse polarity protection
Current State 0 Guaranteed
<= 1.4 mA
Voltage State 0 Guaranteed
-30...5 V
Voltage State 1 Guaranteed
13...30 V
Current State 1 Guaranteed4...9.5 mA
Supply Voltage Limits13-30 V
Current Consumption<= 36 mA 30 V || <= 40 mA 24 V
Mounting Supportpanel
Device Mountingfixing hole 22.3 mm

Specifications

Connections - Terminals
screw connectors, 0.5 x 2.5 mm²
Product Or Component Type
digital display body
Range Of ProductHarmony
[Us] Rated Supply Voltage24 V DC
