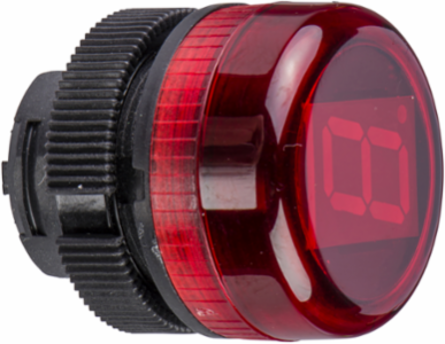

Schneider Electric ZA2VA04 Harmony XB5 Digital Display Head, Red, 22mm, 24V DC, IP65
- MPN: ZA2VA04
- PPN: SCH-ZA2VA04
- UNSPSC: 39122216
CAD
$132.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Harmony ZA2VA04 is a red digital display head. It is part of the range Harmony XB5 diameter 22mm modular plastic push buttons, switches, and pilot lights.
Features
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
- With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
- A wide choice of contact blocks for general purposes or specific applications (low current, standard)
- Excellent mechanical connection with operator head
- A large set of accessories to customize your panels
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France |
|---|
| Weight | 21 g |
|---|
Complementary Attributes
| Us Rated Supply Voltage | 24 V DC |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Cap Operator Or Lens Color | red |
| Carbon Footprint Of The Distribution Phase A4 | 0.0027460809, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.0210887057, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | kg CO2 eq., 0 |
| Local Publishable Date | 2026-01-12 |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1918 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Display Type | 7 segments LED + decimal point |
| Mounting Diameter | 22 mm |
| Product Or Component Type | digital display head |
| Returnability | Yes |
| Software Version | v5.9.4 |
| Sustainable Packaging | Yes |
| Vibration Resistance | 10 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Data Source | extrapolated product |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Certificate Agency | UL, CSA |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0 kg CO2 eq., 0.0221655071 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 0.4 kg CO2 eq., 0.3984971764 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Electrical Shock Protection Class | class II conforming to NF C 20-030 |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Harmony |
| Shock Resistance | 180 gn IEC 60068-2-27 |
| Supply Voltage Limits | 13-30 V |
| Total Lifecycle Carbon Footprint | 0.4 kg CO2 eq. |
| Database Version | 2022-01 |
| Cap/Operator Or Lens Colour | red |
| Customs Code | 8531909001 |
| Functional Unit Description | This monolithic red pilot light comes with integral LED. This single component pilot light provides clear visual feedback on the status of machines. Pilot lights helps to know when a machine s process has started or stopped to keep workers safe and equipment operating smoothly with power consumption of 3.3W with 70% of use rate for 10 years and product is adhering with standard EN/IEC 60947-5-1. |
| Functional Unit Unit | Unit |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-70 °C, -25-70 °C |
|---|---|
| Ip Degree Of Protection | IP65 conforming to IEC 60529, IP65 conforming to NF C 20-010 |
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2308019_V1-EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0.4444974701 |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2308019_V1-EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | digital display head |
|---|
| Range Of Product | Harmony |
|---|
ETIM
| ETIM 8 | EC000223 |
|---|---|
| ETIM 10 | EC000223 |
| ETIM 9 | EC000223 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
