Klein Tools 935DAGL Digital Level with Programmable Angles, 0 to 90-Degree, Magnetic Base
- MPN: 935DAGL
- UPC: 092644692383
- PPN: KLT-935DAGL
- UNSPSC: 27111802
CAD
$84.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

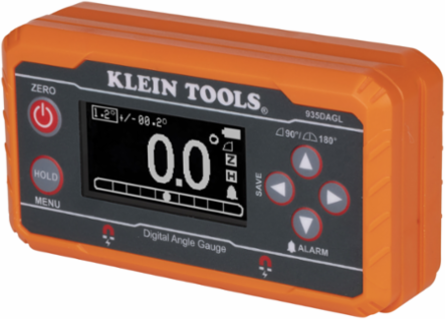

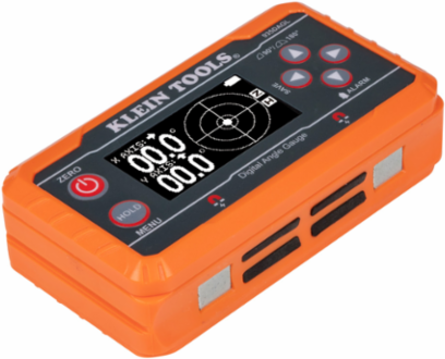

The Klein Tools 935DAGL is a digital level tool that detects and measures angles much more accurately than traditional spirit bubble levels. This inclinometer can measure ranges from 0 to 90-Degree or 0 to 180-Degree with a display that rotates when used in vertical or horizontal orientations. A target angle with audible alarm can be set, allowing the user even greater efficiency. The V-groove magnetic base can attach to a miter saw, table saw, conduit, pipe, and other round or ferromagnetic surfaces.
Features

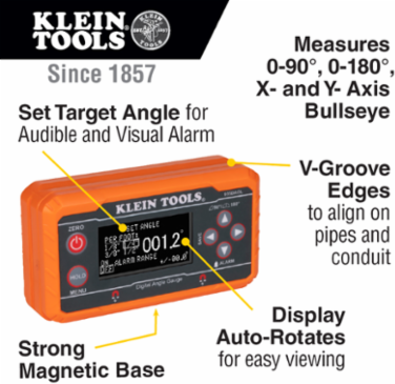

- Digital level measures 0 to 90-Degree, 0 to 180-Degree, or dual axis bullseye ranges
- Pre-programmed commonly used target pitches for efficiency and ease-of use: 1/8-Inch, 1/4-Inch, 3/8-Inch and 1/2-Inch per foot

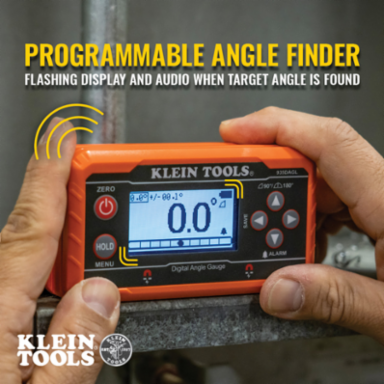

- Easily achieve target angle by setting an audible alarm; LCD will change color as a visual indicator of reaching the set target angle

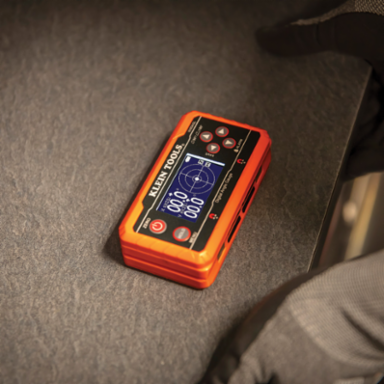

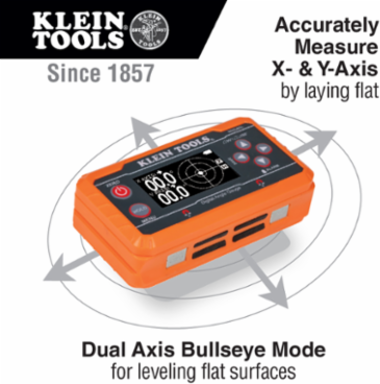

- Use in bullseye orientation to accurately determine X- and Y-axis

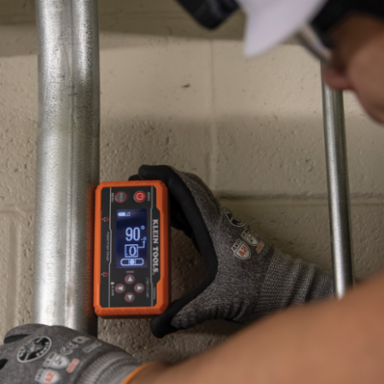

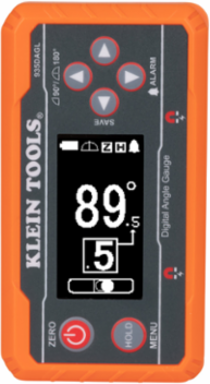

- Display auto-rotates when used in horizontal or vertical orientation
- High visibility reverse contrast display improves visibility in dimly lit work environments

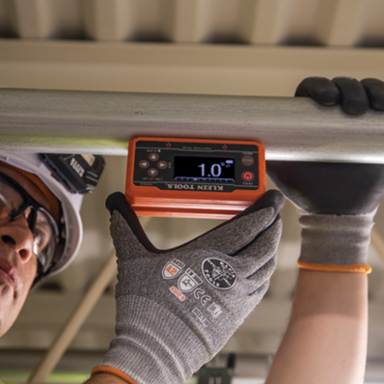

- Strong magnetic base attaches to ferromagnetic surfaces

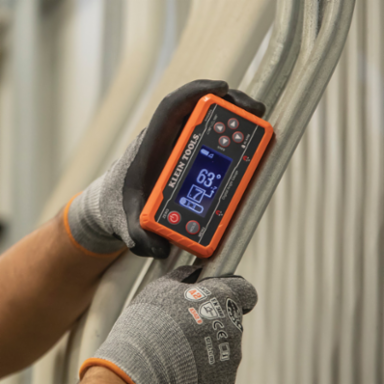

- V-Groove edges enable optimal alignment on conduit and pipes for bending and alignment
- Language selectable menu for English, Spanish, and French
- Soft carrying case and 2 x AA batteries included

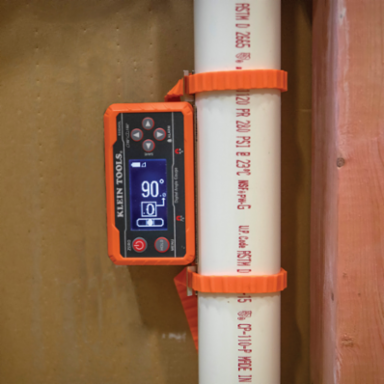

- Optional Plumber's Kit (Cat. No. 69346) allows the level to be used with PVC and other non-magnetic pipes and Conduit, up to 6 inches of outer diameter
- Audible Alarm, Magnetic Base, V-Grooves on Top and Bottom
Documentation & Downloads
Specifications
Key Specifications
- Drop Protection
- 6.6' (2 m)
- Type
- Digital Level
- Accuracy
- Vertical and Horizontal Orientation - +/- 0.2°; Bullseye Orientation - +/- 0.5°
- Low Battery Alarm
- No
- Batteries
- 2 x AA
- Overall Width (cm)
- 3.5
- Overall Height (cm)
- 6.3
- Overall Length (Inch)
- 4.57
- Weight (oz)
- 7
- Height
- 2.4800 in
- Depth
- 4.5500 in
Magnet TypePermanent Rare Earth
ApplicationMeasures Angles; Use as a Digital Level
MaterialABS Plastic Housing and Electronic Components
Ingress ProtectionIP42 Dust and Water Resistant
IncludedDigital Level; Soft Carrying Case; Instruction Manual; Batteries
Overall Height (Inch)2.48
Overall Width (Inch)1.36
Weight (g)198
Overall Length (cm)11.6
Width1.3600 in
Weight0.3700 lbs
