Schneider Electric A9A15151 Acti9 DIN Rail Mounting Base for 22 mm Buttons, White, 35 mm Rail Compatible
- MPN: A9A15151
- PPN: SCH-A9A15151
CAD
$26.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description

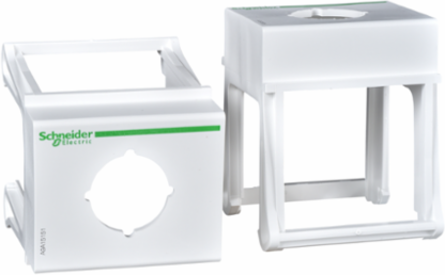

This Acti9 button holder is for buttons, switches and indicators with metal or plastic flange of the SE XB4, XB5 type. It is dedicated to 22mm diameter button for control and signalling units. It could be used for control and indications auxiliaries as push-buttons, emergency stops, switches, light indicators. It is suitable for tertiary and industrial applications. It can be attached to a symmetrical 35mm rail, in modular cabinets or enclosures. The color is white (RAL9003). The drilling diameter is 22.3mm. It is a self-extinguishing material. The width in 9mm pitches is 6. The dimensions are (W) 54mm x (H) 60mm x (D) 66,7mm.
Features
- Designed for tool-free mounting on standard 35mm top-hat DIN rails, this base utilizes a high-tension locking clip that ensures a vibration-resistant connection. This "click-and-go" mechanism dramatically speeds up assembly time for panel builders and prevents component shifting or loosening over time, which is critical for maintaining long-term electrical contact integrity in high-vibration industrial environments.
- Molded from premium-grade, heat-resistant thermoplastic, the A9A15151 is engineered to perform reliably in high-temperature control environments. Its durable, flame-retardant casing protects the structural integrity of your mounted devices against chemical exposure and mechanical stress, ensuring your automation or power distribution system remains compliant with global industrial longevity standards
- Specifically engineered for the Acti9 series, this mounting base provides a seamless, snap-on transition for non-DIN rail components onto standard 35mm top-hat rails. This professional-grade mounting solution eliminates the need for custom fabrication or panel drilling, allowing industrial electricians to maintain a clean, organized, and uniform layout across their entire electrical enclosure.
- Molded from premium, flame-retardant polyamide material, this mounting base is built to withstand the rigors of high-temperature control panels and mechanical vibrations. Its robust mechanical stability ensures that sensitive internal components remain securely anchored, preventing accidental dislodging or loose connections that can lead to intermittent system failures and costly production downtime.
Documentation & Downloads
Specifications
Additional
- Diameter
- 22 mm
- Width
- 54 mm
- Height
- 60 mm
- Width (in 9 mm pitches)
- 6
- Mounting Support
- 35 mm symmetrical rail
- Fixing Mode
- by clips
- Range Of Product
- Harmony XB4, Harmony XB5, Modicon M221
- Toxic Heavy Metal Free
- Yes
- RoHS Compliance
- Pro-active compliance, China and EU RoHS
- REACH SVHC Status
- Free of Substances of Very High Concern (SVHC)
- Net Weight
- 0.04 kg
- Button And Pilot Light Accessory Type
- mounting support on DIN rail
Drilling Diameter22.3 mm
Internal Depth60 mm
Depth66.7 mm
MaterialInsulated material, self-extinguishing
Mounting Locationenclosure or in cabinet
Product CompatibilityXB4, XB5
ColorWhite, RAL 9003
Mercury FreeYes
RoHS Exemption InformationYes
Warranty18 months
Control Button Component Destinationcommand unit
