Schneider Electric NSYEC105 Plain cable gland plate, PanelSeT SFN, Spacial SF, for electrical enclosure W1000 D500mm, fixed by clips

Plain cable gland plate, PanelSeT SFN, Spacial SF, for electrical enclosure W1000 D500mm, fixed by clips
Plain cable gland plate, PanelSeT SFN, Spacial SF, for electrical enclosure W1000 D500mm, fixed by clips
  • MPN: NSYEC105
  • PPN: SCH-NSYEC105

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$120.17/ EA

    Description

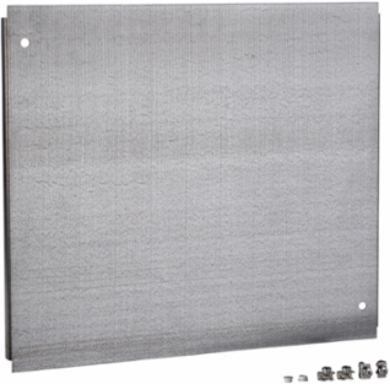

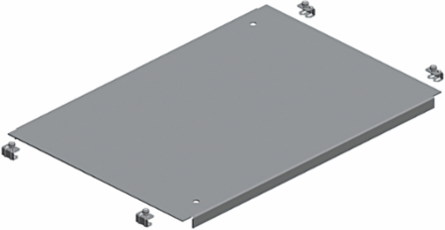

    This is a multi-purpose plain cable gland plate for PanelSeT SFN and PanelSeT SF electrical enclosures. The product is made of galvanised steel. It is suitable for enclosures with nominal width and depth of 1000 and 500 mm respectively. The set contains one plate with and fixing elements. The cable gland plate is to be mounted on enclosure bottom.

    Specifications

    Important Information Attributes

    Persona Type Ids
    LC, OM, OM8, PB, SI
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Device Composition
    fixing elements, 1 plate
    Carbon Footprint Of The End Of Life Phase C1 To C4
    11 kg CO2 eq., 11.28877019
    Carbon Footprint Of The Manufacturing Phase A1 To A3
    21 kg CO2 eq., 20.86525887
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Scope Perimeter
    At least in Europe
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    7
    Without Single Use Plastic
    No
    Tier Id
    2
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Cable Gland Type
    standard
    Energy Efficiency Optimized
    False
    Mounting Location
    enclosure bottom
    Product Or Component Type
    cable gland plate
    Range
    PanelSeT
    Software Version
    v5.9.4
    Thickness
    1.5 mm
    Accessory Separate Part Category
    cable management accessory
    Pep Code
    ENVPEP1109023EN
    Pep Verification Date
    2023-03-30
    Psr Version
    PSR-0005-ed2-2016 03 29
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime, In Y
    20
    Recyclability Potential, In %
    98
    Pn
    1
    Height Useful
    30 mm
    Width Real
    useful: 816 mm
    Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    Market SegmentationCommercial, Industrial
    Carbon Footprint Of The Distribution Phase A40.924376765, 0.9 kg CO2 eq.
    Carbon Footprint Of The Installation Phase A51.064766635, 1 kg CO2 eq.
    Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
    Local Publishable Date2026-02-24
    Stocking FlagN
    Weee ScopeOut
    Eoli Availability DisplayNo need of specific recycling operations
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1912
    China Rohs In ScopeYes
    With Recycled CardboardNo
    Product Contributes To Saved And Avoided EmissionsNo
    Tier2
    Function OptionStandard
    Cable Entryplain
    Device Applicationmulti-purpose
    Materialgalvanised steel
    Product AvailabilityStock - Normally stocked in distribution facility
    Quantity Per Setset of 1
    ReturnabilityYes
    Sustainable PackagingNo
    Total Lifecycle Carbon Footprint34 kg CO2 eq.
    Warranty In Months18
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
    Functional-unit Unitunit
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
    Offer Owner Code190789
    Height Nominal30 mm
    Width Nominalnominal: 1000 mm

    Environment Attributes Main

    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    34.14317247
    Eu Rohs Directive
    Compliant By Exemption
    Packaging Without Single Use Plastic
    No
    Pep Code
    ENVPEP1109023EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Environmental DisclosureENVPEP1109023EN
    Packaging Made With Recycled CardboardNo
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2023-03-30
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Type
    cable gland plate

    ETIM

    ETIM 8
    EC000211
    ETIM 9EC000211

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Specifications

    Country of Origin
    Spain, France
    Width
    32.13 in
    Height1.18 in
