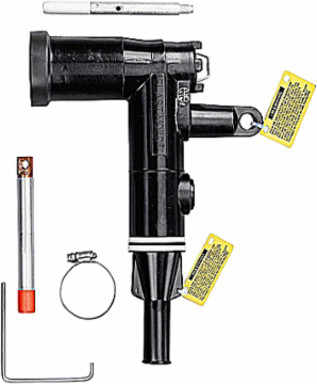

Thomas & Betts 167DELR-7495-5240 Deadbreak Direct Test Repair Elbow Connector
- MPN: 167DELR-7495-5240
- UPC: 783786503957
- PPN: T-B-167DELR-7495-5240
CAD
$760.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
200 Amp, 15kV, Loadbreak Direct Test Repair Elbow Connector, Cable Insulation Diameter 0.640 inch to 0.820 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 1/0 or Solid 2/0 or mmSquared 53.49.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation, Provision for ground wire connection. Wide cable range with minimum number of sizes. Extended Length housing and Compression Lug - plus 3-1/4 inch (82.6mm).
- Standard
- ANSI/IEEE Standard 386
- Conductor Range
- Conductor Size AWG Compressed Stranded 1/0 or Solid 2/0 or mmSquared 53.49.
- Color
- Black
- Amperage Rating
- 200 Amps
- Temperature Rating
- -20 Degrees C to +65 Degrees C
- Consist Of
- Includes Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Tube of Lubricant, Installation Instructions, Crimp Chart .
IGCC4586 Electrical connector assembly
TypeDeadbreak Direct Test Repair Elbow Connector
ApplicationDesigned for connecting to and operating 15kV Class, 95kV BIL apparatus.
SizeCable Insulation Diameter 0.640 inch to 0.820 inch.
MaterialHousing - EPDM Rubber
Voltage Rating15kV
InsulationYes, EPDM Rubber
Environmental ConditionsFully Submersible
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)1x1x1
