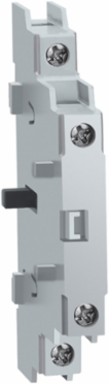

Schneider Electric VLSA10R1E TeSys VLS Disconnect Switch Auxiliary Contact Block, Size 1, 600V Operation, DIN Rail
- MPN: VLSA10R1E
- PPN: SCH-VLSA10R1E
CAD
$49.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This auxiliary contact can be added to a VLS3P016R1, VLS3P025R1, VLS3P032R1, VLS3P040R1 or VLS3P063R1 DIN rail mount switch. This auxiliary contact can be mounted on the right or left hand side. This auxiliary contact has one normally open early beak contact. The operational voltage of this auxiliary contact is 600 V. This auxiliary contact block has A600 and Q600 current ratings. The screw clamp terminals will accept 18 AWG to 6 AWG wire. Auxiliary contact module is 3.07 inches tall, 0.47 inches wide and 1.72 inches deep. It weighs 0.08 lbs. This auxiliary contact module is cULus Listed and meets IEC 60947-3 requirements.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, Italy
Depth46.2 mm
Physical Attributes
- Color
- Gray
Complementary Attributes
- Minimum Output Current
- 10 mA
Minimum Output Voltage5 V
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Mechanical Robustness
- vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6, shocks 11 ms Ea 15 gn) IEC 60068-2-27
- Network Type
- DC, AC
- [Ie] Rated Operational Current
- 6 A AC-15)24 V AC, 6 A AC-15)48 V AC, 6 A AC-15)127 V AC3 A AC-15)240 V AC3 A DC-13)24 V DC, 1.5 A DC-13)48 V DC, 0.55 A DC-13)127 V DC, 0.27 A DC-13)240 V DC
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- Y
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Product Category
- 5
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contact Operation
- early-break 1 NC
- Device Short Name
- VLSA
- Fire Resistance
- 850 °C IEC 60695-2-11
- Network Frequency
- 50/60 Hz
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- TeSys
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Width Nominal
- 12 mm
- [Ithe] Conventional Enclosed Thermal Current
- 10 A
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538908140
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Mounting Locationright, left
Certificate AgencycULus, GL
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
TraceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1943
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Compatibility CodeVLS
Contacts Type And Composition1 NC
Energy Efficiency OptimizedFalse
Mounting SupportDIN rail
Performance Levelhigh performance
Product Or Component Typeauxiliary contact block
ReturnabilityNo
Tightening Torquecontrol circuit 0.8-1 N.m screw clamp terminals
Height Nominal78 mm
[Ith] Conventional Free Air Thermal Current10 A (at 55 °C)
[Ue] Rated Operational Voltage690 V AC 50/60 Hz
Connections - Terminalscontrol circuit screw clamp terminals 2.5-2.5 mm² flexible - without cable end
Package Weight(Lbs)44.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation-25-55 °C, -25-55 °C
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- auxiliary contact block
ETIM
- ETIM 8
- EC000041
ETIM 9EC000041
Output Attributes
- Minimum Output Current
- 10 mA
Minimum Output Voltage5 V
