TeSys VLS Disconnect Switch, 16A, 10HP, 3 Poles, DIN Rail Mount
TeSys VLS Disconnect Switch, 16A, 10HP, 3 Poles, DIN Rail Mount
Schneider Electric

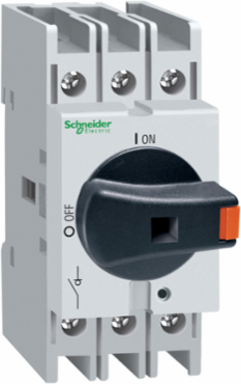

Schneider Electric VLS3P016R1 TeSys VLS Disconnect Switch, 16A, 10HP, 3 Poles, DIN Rail Mount

  • MPN: VLS3P016R1
  • PPN: SCH-VLS3P016R1
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $81.69

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

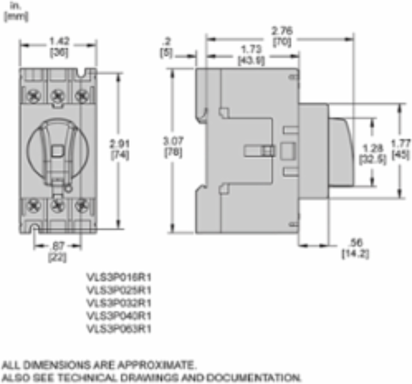

    These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This 16A disconnect switch has 3 normally open poles and mounts on DIN rail. Per UL and CSA this this disconnect switch has a 1 HP rating at 120 VAC and a 2 HP at 240 VAC single phase. Per UL and CSA this disconnect switch has a 5 HP rating at 200 to 208 VAC and 240 VAC and a 10 HP rating at 480 and 600 VAC three phase. Per UL508A this this disconnect switch has up to a 5 kA at 600 V short circuit current rating (SCCR) with a 30A Type RK5 fuse maximum. Per IEC requirements, this disconnect switch has a 7.5 kW rating at 400 and 500 V and a 11 kW rating at 690V three phase. The screw clamp terminals will accept 10 mm solid or 16 mm stranded wire. The clamps will also accept solid or stranded wire from 18 AWG to 6 AWG. This disconnect switch is 3.07 inches tall, 1.42 inches wide and 2.95 inches deep. The switch weighs 0.30 lbs. There are many handles and accessories available this TeSys VLS disconnect switch. This TeSys VLS disconnect switch is cULus Listed and meets IEC 60947-3 requirements.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Italy, United States
    Depth78 mm

    Physical Attributes

    Color
    Gray
    Handle Front Plate Color
    grey
    Handle Colorblack

    Complementary Attributes

    Rated Operational Power In W
    7.5 kW 400 V AC-23A), 7.5 kW 500 V AC-23A)11 kW 690 V AC-23A)

    Important Information Attributes

    Persona Type Ids
    EU, LC, OM, OM8, PB
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Device Composition
    handle, switch
    Certificate Agency
    cULus, GL
    [Ue] Rated Operational Voltage
    600 V AC 50/60 Hz UL 508, 690 V AC 50/60 Hz
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Serviceability
    No
    Field Service Division
    PPIBS
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    Reach Full Compliance Status Id
    NOT_CONTAINING_SVHC
    Rohs Eur In Scope
    Yes
    Rohs Eur Conformity Date
    2541
    China Rohs In Scope
    No
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    2
    Function Option
    Standard
    Compatibility Code
    VLS
    Control Type
    rotary handle
    Electrical Durability
    100000 cycles AC-21A
    Fire Resistance
    960 °C IEC 60695-2-11
    Intermittent Duty Class
    class 120 - 60 %
    Marking
    0 - 1
    Mounting Support
    back DIN rail
    Network Type
    AC
    Performance Level
    high performance
    Product Name
    TeSys VARIO LS
    Range
    TeSys
    Rotary Handle Mounting Style
    direct
    Suitability For Isolation
    yes
    Tightening Torque
    power circuit 1.8-2 N.m screw clamp terminals
    Handle Color
    black
    Height Nominal
    75 mm
    [Icm] Rated Short-circuit Making Capacity
    1128 A 690 V
    [Ith] Conventional Free Air Thermal Current
    16 A (at 55 °C)
    [Uimp] Rated Impulse Withstand Voltage
    8 kV
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Customs Code
    8536509065
    Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    Market SegmentationCommercial, Industrial
    Mechanical Robustnessvibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6, shocks 11 ms Ea 15 gn) IEC 60068-2-27
    [Ie] Rated Operational Current16 A AC-22A Ue: 500 V, 16 A AC-22A Ue: 690 V16 A AC-23A Ue: 500 V, 16 A AC-23A Ue: 690 V16 A Ue: 600 V UL 50816 A AC-21A Ue: 400 V, 16 A AC-21A Ue: 500 V, 16 A AC-21A Ue: 690 V, 16 A AC-22A Ue: 400 V, 16 A AC-23A Ue: 400 V
    Connections - Terminalspower circuit screw clamp terminals 10-10 mm² solid, power circuit screw clamp terminals 16-16 mm² flexible - without cable end
    Local Publishable Date2026-06-27
    Stocking FlagN
    Device TypeLV equipment - LV switch - disconnector
    TraceabilityNo
    Average Life Duration15 year(s)
    Weee Product Category5
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Tier Id2
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Contacts Type And Composition3 NO
    Device Short NameVLS3P
    Energy Efficiency OptimizedFalse
    Fixing Modeby clips back
    Making Capacity24 A 690 V AC-21A48 A 690 V AC-22A160 A 690 V AC-23A
    Mechanical Durability100000 cycles
    Network Frequency50/60 Hz
    Number Of Poles3P
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Or Component Typeswitch body
    ReturnabilityYes
    Rotary Handle Padlocking1 padlock 4-4 mm
    Sustainable PackagingYes
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Handle Front Plate Colorgrey
    Width Nominal36 mm
    [Icw] Rated Short-time Withstand Current800 A 690 V 1 s
    [Ithe] Conventional Enclosed Thermal Current16 A
    Rated Conditional Short-circuit Current50 kA 400 V 16 A gG
    Package Weight(Lbs)171.000 g
    Warranty (In Months)18

    Environment Attributes Main

    China Rohs Regulation
    Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    Take Back
    No
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Ip Degree Of Protection
    IP20 conforming to IEC 60529
    Packaging Without Single Use Plastic
    Yes
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Ambient Air Temperature For Operation-25-55 °C, -25-55 °C
    Reach Free ShvcYes
    Toxic Heavy Metal FreeYes
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardYes
    Reach Free Of SvhcYes

    General Attributes

    Product Or Component Type
    switch body

    ETIM

    ETIM 8
    EC000216
    ETIM 9EC000216

    Accessories
