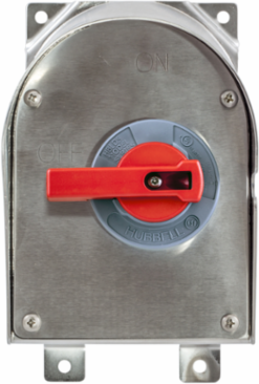

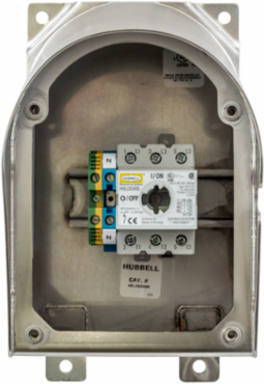

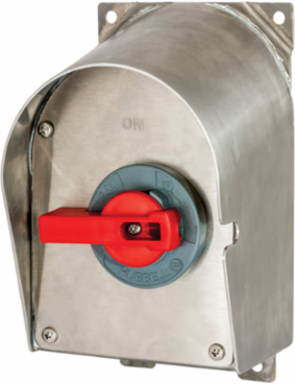

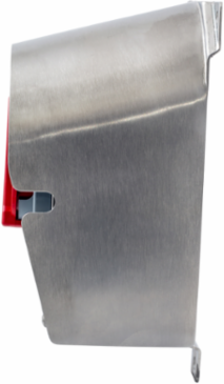

Hubbell Wiring Device-Kellems HBLDS10SSR Disconnect Switch 100A NEMA 4X, IP69k, Sloped Top, Stainless Steel
- MPN: HBLDS10SSR
- UPC: 783585541631
- PPN: HBL-HBLDS10SSR
- UNSPSC: 39121521
CAD
$2897.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Disconnect Switch Sloped Enclosure, 100A 600V AC, Non-Fused, NEMA 4X
Features
- Formed in nonporous 304 stainless steel
- IP69k and Type 4X,12K water ingress protection
- Certified by NSF for hygiene in food processing applications
- Highly visible red handle which meets OSHA Lockout/Tagout capabilities
- Accepts up to 2 Auxiliary contacts
Specifications
Key Specifications
- Country of Origin
- Poland
- Dimensions
- 11.41 in x 7.66 in x 6.1 in
- Length
- 11.41 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current & voltage;Electrical - Dielectric Voltage - Withstands 3000V AC minimum;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V0 Classification;Environmental - Operating Temperature - Max Continuous 75°C,Min Continuous -40°C w/o impact;Environmental - UV Resistance - All materials are UV stabilized;Mechanical - Impact Resistance - In accordance with UL 746C;Mechanical - Mounting - Stainless Steel - Feet are fixed;Mechanical - Product Identification - Identification and ratings are part of external label;Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
- Current Rating
- 100
- Size
- 11.41 in x 7.66 in x 6.1 in
- Width
- 7.66 in
- General Literature Asset 1 Display Text
- Safety Product Guide
- General Literature Asset 3 Display Text
- Circuit-Lock® Motor Disconnects
- Dielectric Strength
- Withstands 3000V AC minimum
- Shape
- Sloped Top
- Class Code
- A16
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A16A260
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 11.850 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1
Current / Amperage Rating100 A
Height6.1 in
Mounting MethodFeet are fixed
ApplicationLabelless
Enclosure TypeType 4X, IP69k
TypeDisconnect Switches
Engineering Drawing 1 Display TextHBLDS10SSR AutoCAD Drawing
General Literature Asset 2 Display TextIndustrial Solutions
Amperage Rating100 A
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
StyleHeavy Duty
Description - InvoiceSLOPED DISCONNECT, 100A UNFUSED, 4X, SS
Harmonization Code8536509025
MSDS FlagNo
SeriesNon-Fused
BOX SIZE7.900x13.200x9.300 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00783585541631
Case Weight11.850 lb.
Certifications
- EU RoHS Indicator
- Contact Manufacturer
