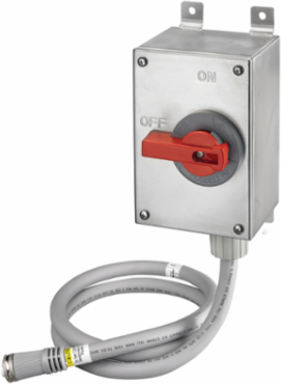

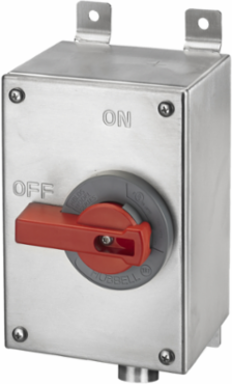

Hubbell Wiring Device-Kellems HBLDS3SSMQR Disconnect Switch 30A 600V AC NEMA 4X Stainless Steel 8.5x6x4.12 Inch
- MPN: HBLDS3SSMQR
- UPC: 783585372600
- PPN: HBL-HBLDS3SSMQR
- UNSPSC: 39122205
CAD
$1739.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Disconnect Switches, Square top Enclosure, 30A 600V AC, Non-Fused, NEMA 4X, Stainless Steel, With 1) Pre-Wired LINKOSITY Female Receptacle
Features
- Formed in nonporous 304 stainless steel
- IP69k and Type 4X,12K water ingress protection
- Labelless markings on the cover
- Lockable Handle to Meet OSHA Lockout/Tagout Regulations
- Cable Ratings: TC-ER, MTW, STOOW
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Poland
- Height
- 4.12 in
- Industry Standard(s)
- Listed to UL 2238 and UL 50E;UL 508, Industrial Control Equipment File #E36355
- Length
- 8.5 in
- Amperage Rating
- 30 A
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Standard
- Listed to UL 2238 and UL 50E;UL 508, Industrial Control Equipment File #E36355
- Width
- 6 in
- General Literature Asset 1 Display Text
- Safety Product Guide
- General Literature Asset 3 Display Text
- Industrial Solutions
- Dielectric Strength
- 2,200V AC minimum for 1 minute
- Phase
- Three Phase
- Class Code
- A16
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A16A260
- Series
- MotorQuick/LINKOSITY
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585372600
- Lowest Level UOM
- Each
Dimensions8.5 in x 6 in x 4.12 in
Horsepower - Maximum15
Ingress ProtectionIP67
PerformanceElectrical - Dielectric Voltage - 2,200V AC minimum for 1 minute;Electrical - Electrical Life - 6,000 cycles with load;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V0 Classification;Environmental - Operating Temperature - Max. continuous 75°C, Min. continuous -40°C;Mechanical - Impact Resistance - UL746C;Mechanical - Mechanical Life - 10,000 minimum cycles;Mechanical - Terminal Accommodations - 30A, #14 AWG Min. - #10 AWG Max;Mechanical - Terminal Torque - 30A, 20 inch pounds
EnclosureType 4X
Size8.5 in x 6 in x 4.12 in
TypeDisconnect Switches
Engineering Drawing 1 Display TextHBLDS3SSMQR AutoCAD Drawing
General Literature Asset 2 Display TextSafety Product Guide
ConnectivityPre-Wired
Enclosure TypeType 4X
Wire Size#14 AWG to #10 AWG
Description - InvoiceDISC,3P 30A,UNFUSED,N4X,SS, 1 MTRQCK RCP
Harmonization Code8537109170
MSDS FlagNo
Current Rating30 A
Base Unit of MeasureEA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- No
