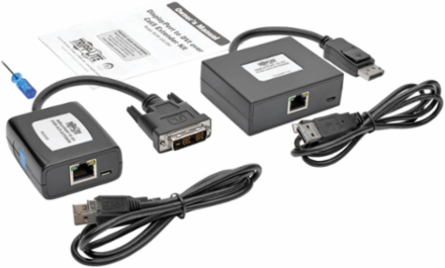

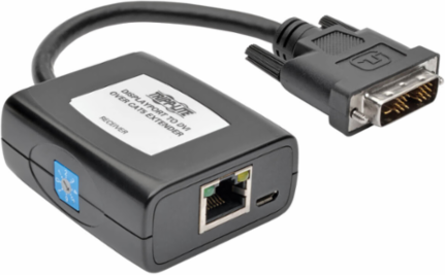

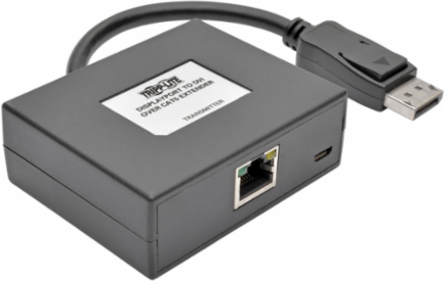

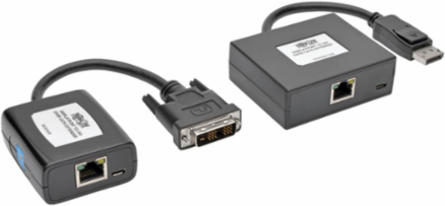

Tripp Lite B150-1A1-DVI DisplayPort to DVI Active Extender Kit, 125 ft, with Built-in Cables
- MPN: B150-1A1-DVI
- UPC: 037332191311
- PPN: TRP-B150-1A1-DVI
CAD
$107.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Transmitter and receiver work in tandem to convert a DisplayPort signal to DVI and extend it via Cat5e/6 cable to a projector, monitor or television up to 125 ft. away. Ideal for digital signs, schools and trade shows.
Features
- Supports high-definition video resolutions up to 1920 x 1080 (60 Hz)
- Supports 24-bit True Color (8 bits per channel) and stereo audio
- Included USB Micro-B cables supply power to both units
- Works with all operating systems
- Plug and play—no software or drivers to install
- HDCP 1.3 compliant
- 1-year limited warranty
Specifications
Additional
- Max 1080P Range
- 125 ft
- Ports
- 1
- Max 1024 x 768 Range
- 150 ft
- Max 480i Range
- 150 ft
- Max 1600 x 1200 Range
- 150 ft
- Max 800 x 600 Range
- 150 ft
- Color Depth
- 24-bit True Color (8 bits per channel)
- Cable Type
- Cat5e/6 (24 AWG solid-wire recommended)
- Side A Connector 2
- RJ45 (Female)
- Side B Connector 1
- DVI-D Single Link (Male)
- Side B Connector 3
- USB A (Male)
- Power Supply
- USB Micro-B cables, USB powered (no external supply needed)
- Controls
- Built-in equalization control
- Dimensions
- 1.73 x 7.87 x 5.95 in
- Warranty
- 1-year limited warranty
Video Resolution1920 x 1080 (60 Hz)
Max 720P Range150 ft
Max 1080i Range150 ft
Max 640 x 480 Range150 ft
Max 1440 x 900 Range150 ft
Max 480P Range150 ft
Audio SupportStereo
Side A Connector 1DisplayPort (Male)
Side A Connector 3USB A (Male)
Side B Connector 2RJ45 (Female)
ConnectivityDisplayPort (transmitter), DVI-D single-link (receiver)
TechnologyDVI; DisplayPort
Weight0.49 lbs
ColorBlack
ComplianceHDCP 1.3, TAA Compliant
