Lutron

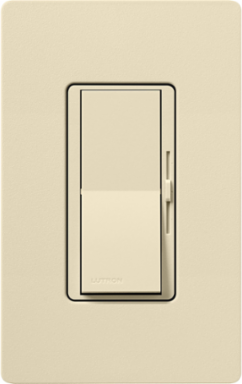

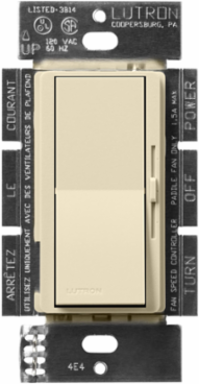

Lutron DVSCFSQ-F-SD DIVA 3-Way Fan Switch, 1.5 Amp, 3-Speed, Satin Finish

DIVA 3-Way Fan Switch, 1.5 Amp, 3-Speed, Satin Finish
DIVA 3-Way Fan Switch, 1.5 Amp, 3-Speed, Satin Finish
DIVA 3-Way Fan Switch, 1.5 Amp, 3-Speed, Satin Finish
DIVA 3-Way Fan Switch, 1.5 Amp, 3-Speed, Satin Finish
DIVA 3-Way Fan Switch, 1.5 Amp, 3-Speed, Satin Finish
DIVA 3-Way Fan Switch, 1.5 Amp, 3-Speed, Satin Finish
  • MPN: DVSCFSQ-F-SD
  • UPC: 784276300643
  • PPN: LUT-DVSCFSQ-F-SD
  • UNSPSC: 39122240

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$60.05/ EA

Description

The Lutron Diva 3-Speed Fan Switch helps achieve the ideal comfort level for any home by controlling a single fan up to 1.5 Amps. The intuitive rocker switch turns the fan on/off to a preset and the linear slider adjusts between 3 speeds (Low, Medium and, High). Install with Lutron Claro Switches in 3-way applications. Coordinating Claro wall plates and 3-way switches sold separately. Available in 20+ colors to consistently match any Lutron device.

Features

  • Includes (1) 3-speed fan switch; Satin finish
  • No Neutral Required; 120V
  • Rated up to 1.5 Amp of indoor ceiling paddle fans
  • One (1) ceiling paddle fan only per fan control; not compatible with fans with proprietary remotes or DC motors
  • 3-way compatible with existing switches
  • Wire-lead connections
  • Large paddle switch turns fan on and off to preset level and slider adjusts fan speed
  • Provides 3 quiet fan speeds for comfort
  • Fits large designer-style openings; Available in in 20+ colors
  • Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately)
  • Controls 1.5 A fan
  • Paddle turns on/off
  • Slide up to increase speed, down to decrease speed
  • 3 quiet fan speeds for increased comfort
  • For use with only one ceiling paddle fan
  • Does not include locator light
  • Designed to prevent motor hum.

Specifications

Specifications

Color
Sand
Voltage Rating
120 V
Number Of Poles
1
Application
Fan Control
Size
4.69 x 2.94 in
Amperage Rating
1.5 A
Actuator
Paddle switch
Aesthetic Finish
Satin
Decorative Color
Sand
MountingWallbox
Contact ConfigurationN-O
Wattage180 W
EnclosurePlastic
TypeFan control, 3-way/single-pole
ConnectionWire leads
Contact Rating1.5 A
Family ColorBeige
FinishSatin
